Appleton TC-612 TC-600 compression coupling (3/4 in)

Brand: APPLETON
SKU: TC-612
Availability: In Stock

Ships same day if ordered by 12 pm
$32.56
$32.56
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

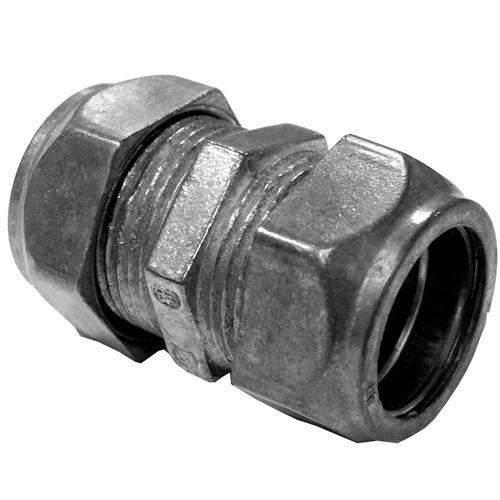

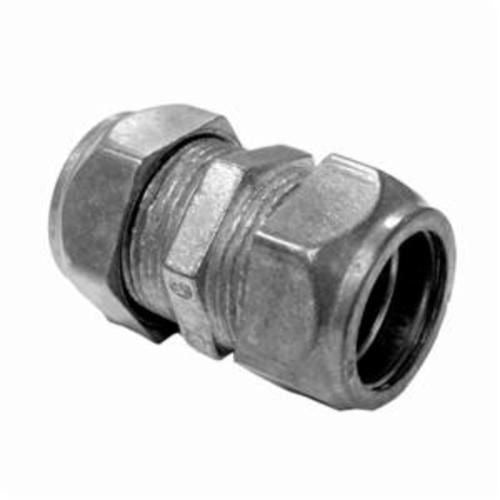

Appleton TC-612 is a TC-600 series compression coupling for 3/4 in EMT conduit. Constructed of die-cast zinc, the coupling joins lengths of steel EMT and secures a compression connection for electrical installations. It provides concrete-tight performance for dry or damp locations and is rated rain tight for wet locations. Dimensions are 1.21 in outside diameter by 1.78 in length. Meets UL 514B, CSA, NEMA FB-1 and RoHS requirements.

  • Die-cast zinc compression coupling sized for 3/4 in EMT with 1.21 in OD and 1.78 in length
  • Joins lengths of steel EMT and secures compression connections for concrete-tight, dry or damp locations; rated rain tight for wet locations
  • Standards: UL 514B (File No. E35001), CSA C22.2, NEMA FB-1; RoHS compliant

Product Highlights

3/4 in die-cast zinc compression coupling for EMT; concrete-tight and rain tight; UL/CSA/NEMA certified

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: TC-612
  • Country of Origin: India
Technical Specifications
Brand
Appleton
Manufacturer Part Number
TC-612
Series
TC-600
Connector Type
Compression coupling
Material
Die cast zinc
Trade Size
3/4 in
Suitable For Use With
EMT conduit (electrical metallic tubing)
Application
Joining lengths of steel EMT; concrete-tight, dry or damp locations; rated rain tight for wet locations
Standards
UL 514B (File No. E35001); CSA C22.2 (208044/No. 18.3); NEMA FB-1; RoHS compliant
Outside Diameter
1.21 in
Length
1.78 in
Connector Use
Joins lengths of steel EMT and secures/terminates EMT to knockouts
MPN (alternate field)
TC-612
UPC
687855106127
GTIN
00687855106127
Country of Origin
India
Sold As
Each
