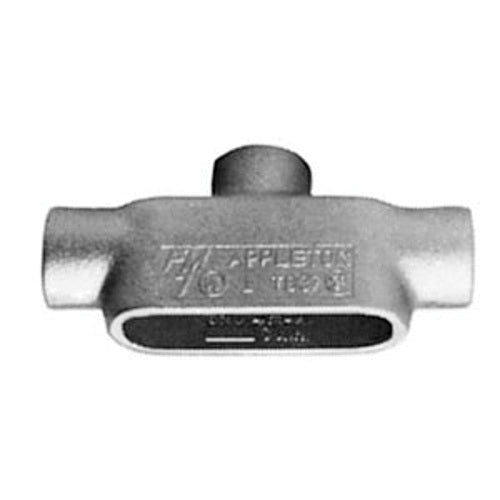

Appleton TB67 Type TB Conduit Outlet Body, 2 in Hub, Form 7

Product Description

The Appleton TB67 2 Form 7 Body is designed for efficient electrical junctions. This conduit outlet body is made from Grayloy iron and features a hub size of two inches. It has a length of nine point nineteen inches, a width of three inches, and a height of four point nineteen inches, making it suitable for various installations.

• Durable construction with Grayloy iron material.
• Suitable for use with rigid steel and aluminum conduits.
• Compliant with UL and RoHS standards.

Product Highlights

This conduit outlet body includes a unique Wedge-Lok clip cover design for easy cover removal without damage. It also features smooth hub bushings that protect conductor insulation.

Product Information

Standard Information

• Brand: Appleton
• MPN: TB67

Technical Specifications

• Material: Grayloy Iron
• Hub Size: 2 inches
• Form: Form 7
• Dimensions: 9.19 inches L x 3 inches W x 4.19 inches H
• Capacity: 50 cu-in
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Mfg Standards/Approvals: ARRA, Buy American Act, UL 514A/514B/E2527
