Appleton TB47SA 1-1/4 AL TB CND BDY

Product Description

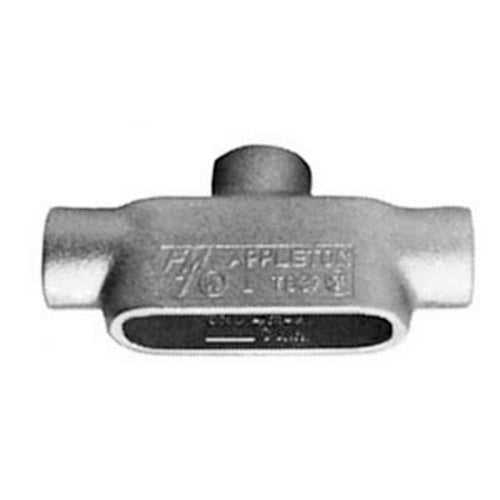

The Appleton TB47SA is a type TB conduit outlet body designed for various rigid conduit applications. With a hub size of one and one-quarter inches, this outlet body features a form number of seven. It has a length of seven point four four inches, a width of two point one nine inches, and a height of three point three one inches. Made from aluminum, it has an epoxy powder coat finish that provides durability and resistance to corrosion.

• Hub Size: 1.25 inches
• Material: Aluminum
• Application: For use with rigid steel and aluminum conduit

Product Highlights

Designed to facilitate bends and serve as pulling fittings in conduit systems, this product accommodates tapered female threaded connections, meeting UL standards for safe use.

Product Information

Standard Information

• Manufacturer: Appleton
• Part Number: TB47SA

Technical Specifications

• Form: 7
• Length: 7.44 inches
• Width: 2.19 inches
• Height: 3.31 inches
• Weight: 1.3 pounds
• Material: Aluminum
• Finish: Epoxy Powder Coat
• Connection: Tapered Female Threaded
• Standards: UL 514A; UL 514B
