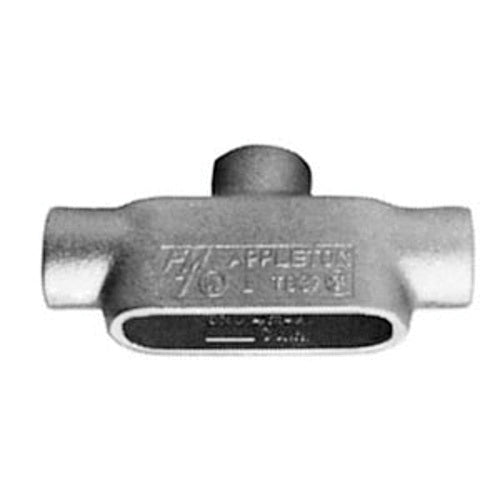

Appleton TB37 UNILETS Type TB Conduit Outlet Body 1 in Hub Form 7 15.5 cu-in

Product Description

The Appleton TB37 conduit outlet body offers a robust solution for electrical conduit applications. This product is designed for use with rigid steel, aluminum, and intermediate metal conduit (IMC). With a cubic capacity of 15.5 cubic inches, it provides ample space for wire splicing.

• Smooth integral bushing protects conductor insulation
• Approved for wet locations
• Interchangeable with Crouse-Hinds Form 7 bodies

Product Highlights

This conduit body features a grayloy iron construction and tapered FNPT connections. The design allows for easy removal of the cover without damaging the conduit body, making maintenance straightforward.

Product Information

Standard Information

• Application: For rigid steel, aluminum, and IMC conduit
• Hub Size: 1 inch

Technical Specifications

• Capacity: 15.5 cu-in
• Material: Grayloy Iron
• Enclosure: NEMA FB-1
• Dimensions: 7-1/4 inches long x 2 inches wide x 3-1/4 inches high
• Finish: Triple Coated
• Mfg Standards/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Mounting Type: Surface
• Number of Hubs: 3
