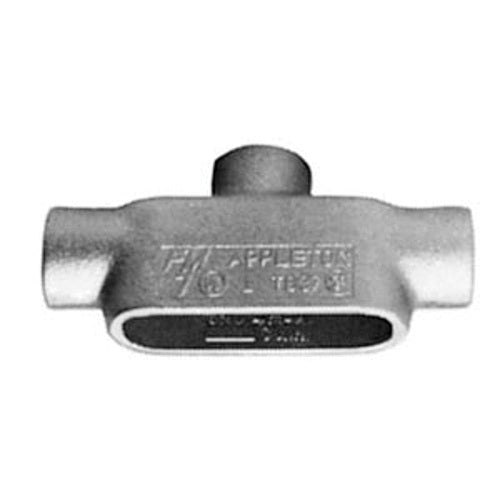

Appleton TB17 1/2 Form 7 Body

Product Description

The Appleton TB17 is a Type TB conduit outlet body with a half-inch hub. It is designed for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). This product features a flat back design and a cubic capacity of six cubic inches, which allows for easier wire pulling and splicing.

• Constructed from durable grayloy iron
• Triple-coated finish offers weather resistance
• Interchangeable with Crouse-Hinds Form 7 bodies

Product Highlights

The TB17 conduit body is ideal for outdoor and wet location installations due to its robust design and protective features.

Product Information

Standard Information

• Brand: Appleton
• Model: TB17

Technical Specifications

• Material: Grayloy Iron
• Dimensions: 5.63 inches (Length) x 1.56 inches (Width) x 2.63 inches (Height)
• Hub Size: 1/2 inch
• Finish: Triple Coated
• Capacity: 6 cu-in
• Connection Type: Tapered FNPT
• Applications: Suitable for use with rigid steel, rigid aluminum conduit, and IMC
• Enclosure: NEMA FB-1
