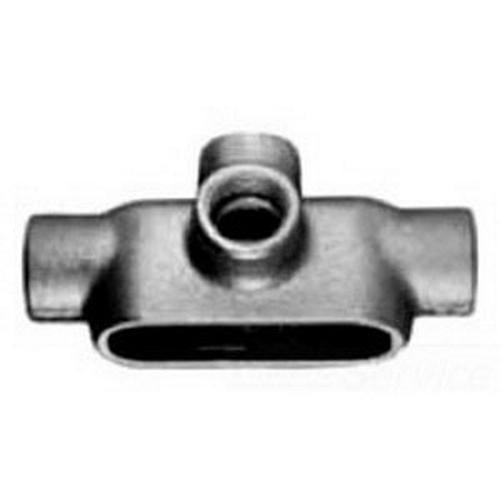

Appleton TA37 Conduit Body, Type TA, 1 inches Form 7

Product Description

The APPLETON TA37 conduit body is a Type TA fitting with a 1" hub diameter and Form 7 style. These conduit bodies connect and change the direction of conduit runs, while also allowing connections for branch runs. They serve as pulling fittings and permit access to conductors for splicing and maintenance.

• Connect and change direction of conduit runs
• Allow connections for branch runs
• Serve as pulling fittings
• Permit access to conductors for splicing and maintenance

Product Highlights

Connect and change direction of conduit runs. Allow connections for branch runs. Serve as pulling fittings. Permit access to conductors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TA37

Technical Specifications

• Diameter: 1 in
• Family / Style: Form 7
• Type: Type TA
• Material: Grayloy Iron
• Hub Size: 1 in
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• TC Connection: Tapered Female Threaded
• Brand: Appleton
• Sub Brand: UNILETS
• Finish: Epoxy Powder Coated
• Height: 3-1/4 Inch
• Length: 7-1/4 Inch
• Width: 3 in
• Capacity: 15.5
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Number of Hubs: 4
