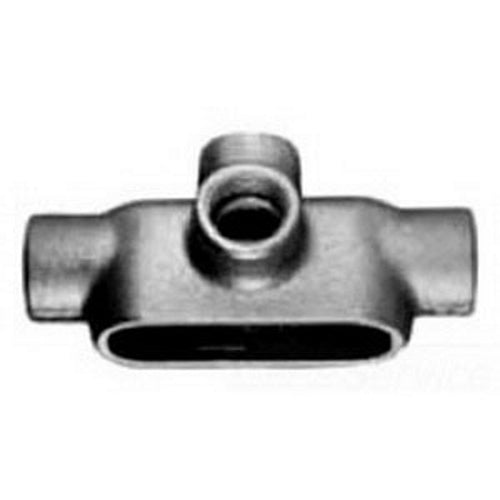

Appleton TA27 TA Conduit Body 3/4 Inch

Product Description

The APPLETON TA27 is a rigid conduit body with a TA configuration and a 3/4 inch hub size. Constructed from zinc electroplated aluminum enameled gray iron, it features a tee back hub location and four hubs. This form 7 conduit body is suitable for rigid conduit/IMC applications.

• Rigid Conduit Body with Access Opening Side
• TA Configuration with Tee Back Hub Location
• Threaded Installation

Product Highlights

This conduit body is designed for connecting and changing the direction of conduit runs, making bends, and providing access for splicing.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TA27

Technical Specifications

• Hub Size: 3/4 Inch
• Installation: Threaded
• Material: Zinc Electroplated Aluminum Enameled Gray Iron
• Form Type: Form 7
• Approval: UL 514A, CSA C22.2
• Used On: Rigid Conduit/IMC
• Applicable Standard: Federal Specification A-A-50563, NEMA FB-1/FB-2.10
• Capacity: 9.5 Cu Inch
• Configuration: TA
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
• Hub Location: Tee Back
• Number of Hubs: 4
• Connection: Tapered Female Threaded
• Application: For Use With Rigid Steel; Rigid Aluminum Conduit And IMC
• Manufacturer: APPLETON
• Finish: Epoxy Powder Coat
• Type: Type TA Conduit Outlet Body
