Appleton T78 TYPE T FORM 8 BODY POWER 2-1/2

Product Description

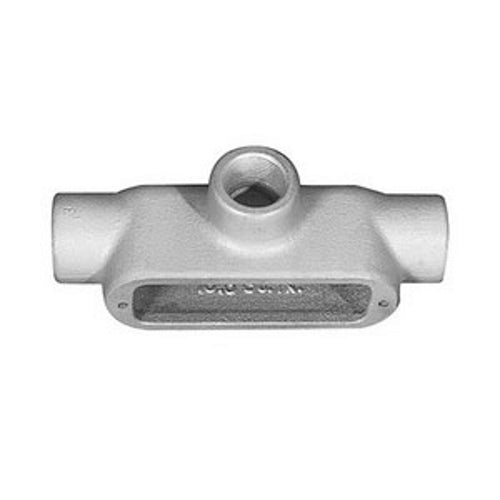

The Appleton T78 is a conduit body designed for use with IMC and rigid conduit systems. The MPN of this model is T78. It features a T configuration with a cover made of zinc electroplated chromate epoxy powder-coated cast gray iron and stamped steel. This conduit body is ideal for accessing wiring within a conduit system while providing a solid and protective enclosure.

• IMC/Rigid conduit compatible
• Three hubs of two and a half inches each
• UL and CSA approved for safety

Product Highlights

This conduit body is suitable for accessing electrical wiring and ensuring connections are secure and reliable.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• MPN: T78
• Catalog Number: T78
• Hub Size: 2-1/2 inches
• Overall Dimensions: 15.63 inches x 6.69 inches x 4.44 inches
• Material: Zinc electroplated chromate epoxy powder-coated gray iron body
• Number of Hubs: 3
• Approval Standards: UL 514A/514B/E2527, CSA C22.2
• Capacity: 200 cubic inches
