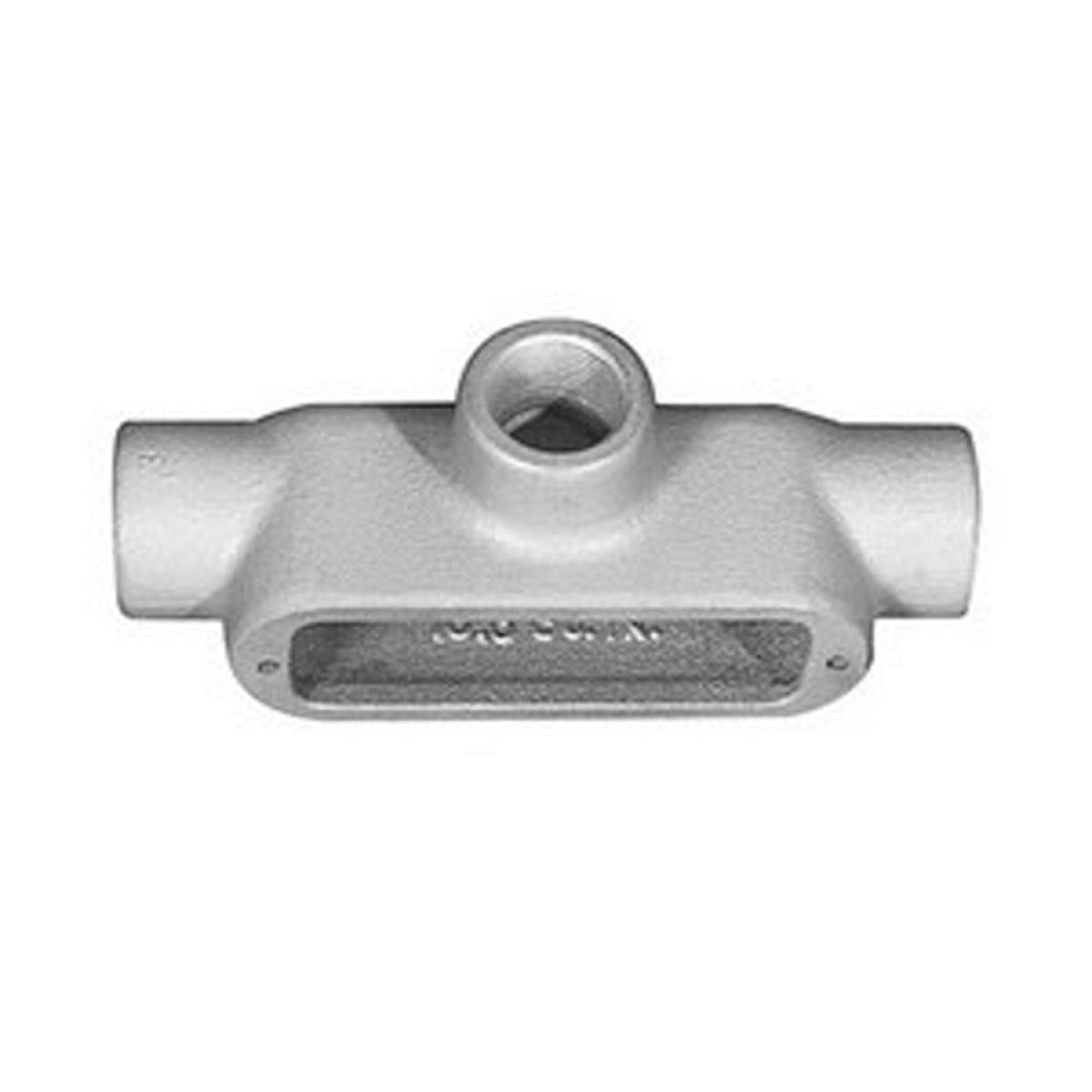

Appleton T68 2 Type T Form 8 Body 2 IN

Product Description

Appleton T68 is a conduit outlet body designed for use with rigid steel conduit and IMC. This model features a hub size of two inches and conforms to Form 8 specifications. Made from Grayloy-Iron, it has a length of twelve point three eight inches, a width of five point one three inches, and a height of three point five six inches.

• Hub size: 2 inches
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)

Product Highlights

This outlet body serves various functions including as pulling fittings, making bends in conduit systems, and providing openings for splicing. It is suitable for applications where wiring capacity is needed.

Product Information

Standard Information

• Brand: Appleton
• MPN: T68

Technical Specifications

• Catalog Number: T68
• Application: For use with rigid steel conduit and IMC
• Country of Origin: Mexico
• Connection: Tapered female threaded
• Special Features: Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings protect conductor insulation; Accurately tapped for tight ground continuity; Fits flush against flat surfaces; Wiring capacity: 105 CU-IN as per NEC 314.16(A)
• Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
