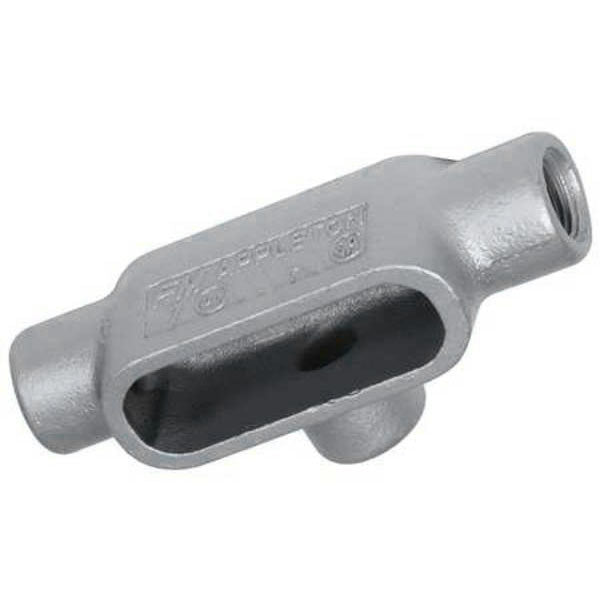

Appleton T57 Type T Conduit Outlet Body, Rigid Conduit Applications, 27 cu-in Capacity

Product Description

The Appleton T57 is a Type T conduit outlet body designed for rigid conduit applications. It features a flat back for improved wiring capacity and surface mounting. This outlet body is made from Grayloy iron and has a capacity of twenty-seven cubic inches. The T57 conduit body is an ideal solution for electricians and contractors looking for reliable conduit fittings.

• Flat back design enhances wiring capacity and surface mountings
• Compatible with other manufacturers’ Form 7 conduit bodies
• Clearly marked internal volume and maximum wire on castings

Product Highlights

This conduit outlet body is suitable for wet locations when equipped with gasketed covers. Its rugged construction and design make it perfect for stringent electrical installations.

Product Information

Standard Information

• Brand: Appleton
• MPN: T57

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 27 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 8-3/16 in L x 3-9/16 in W x 2-9/16 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: Form 7
• Material: Grayloy Iron
• Mfg Standards/Approvals: RoHS Compliant, UL 514A, C22.2 File No. 18/009795, Hazardous Locations Class 1, Div 2
• Mounting Type: Surface
• Number of Hubs: 3
• Package Height: 2.05 in
• Package Length: 8.7 in
• Package Weight: 3.63 lb
• Package Width: 6.7 in
• Type: Type T
