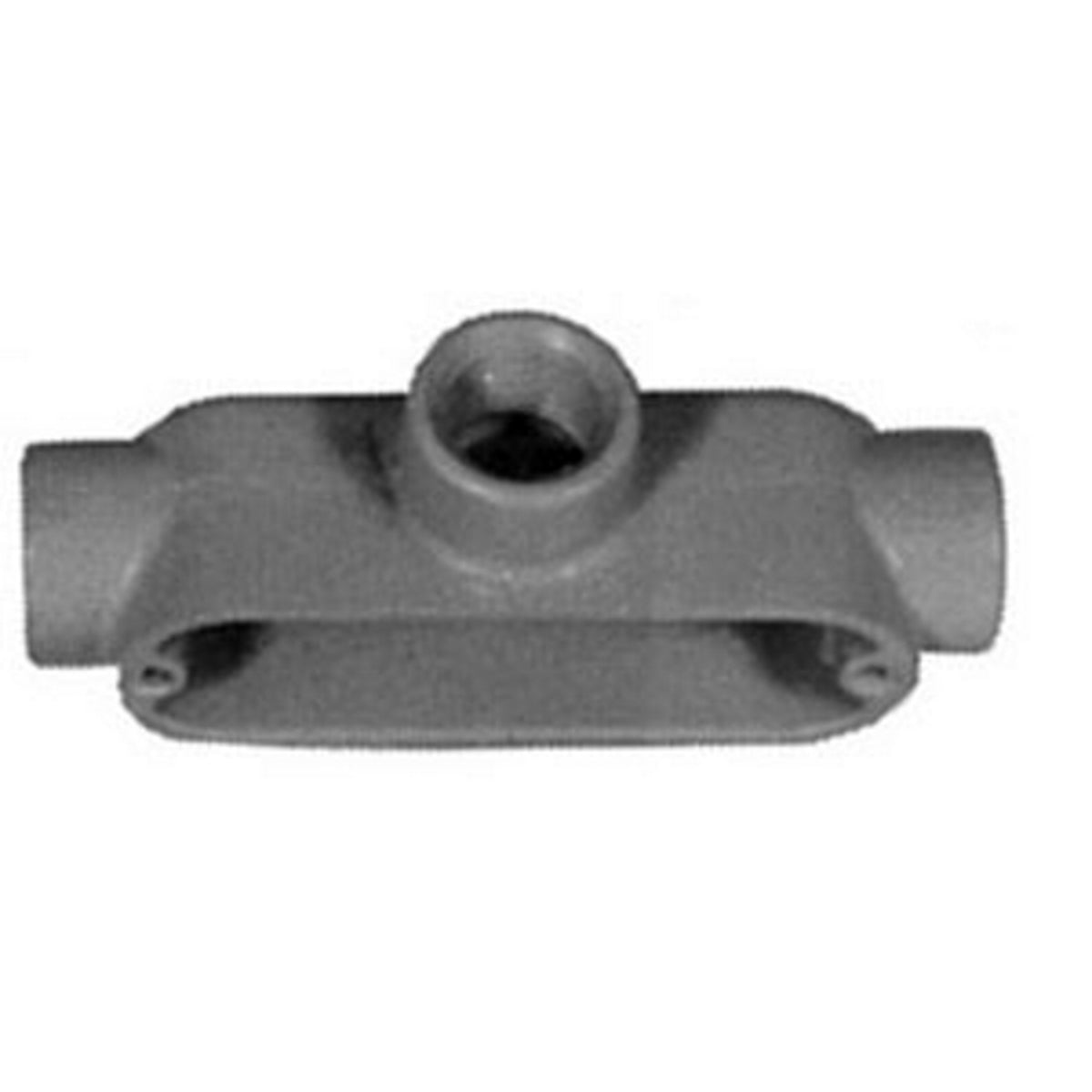

Appleton T50A Body Out Conduit 1/2in Form 85 4Cu-In

Product Description

The Appleton T50A is a type T conduit outlet body designed for 1/2 inch hubs. This product serves multiple functions in electric systems. It features a robust aluminum body with a 4 cubic inch capacity for wiring. The epoxy powder coating adds to its durability and resistance to corrosion.

• Constructed from pressure-cast aluminum.
• Designed for surface mounting and tapered FNPT connection.
• Accommodates various types of conduits, including rigid steel and aluminum.

Product Highlights

This conduit body allows for changes in direction in conduit runs, providing connections for branch runs while permitting access for maintenance.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Emerson Electric

Technical Specifications

• MPN: T50A
• Form: 85
• Type: Type T
• Hub Size: 1/2 inches
• Capacity: 4 cu-in
• Finish: Epoxy Powder Coated
• Dimensions: 4.75 inches L x 1.38 inches H
• Connection Type: Tapered FNPT
