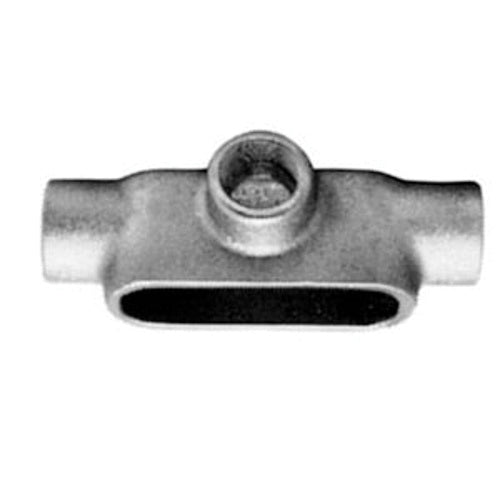

Appleton T47 Type T Conduit Outlet Body, 1-1/4 in Hub, Form 7, 20 cu-in

Product Description

The Appleton T47 is a conduit outlet body designed for applications requiring reliability and durability. This Type T conduit body features a hub size of one and one-quarter inches and a capacity of twenty cubic inches. It is made from Grayloy iron, making it suitable for wet locations.

• Smooth integral bushing protects insulation
• Meets standards for safe installation
• Flat back design allows for easy installation

Product Highlights

This conductor body is ideal for use in conjunction with rigid steel, aluminum, and IMC conduits. The design allows for easy wire pulling and sufficient space for splicing.

Product Information

Standard Information

• Application: For Rigid Steel/Aluminum and IMC Conduit
• Material: Grayloy Iron

Technical Specifications

• Capacity: 20 cu-in
• Hub Size: 1-1/4 in
• Dimensions: 7.44 in L x 3.19 in W x 2.31 in H
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Number of Hubs: 3
• Connection Type: Tapered FNPT
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Finish: Triple Coated
