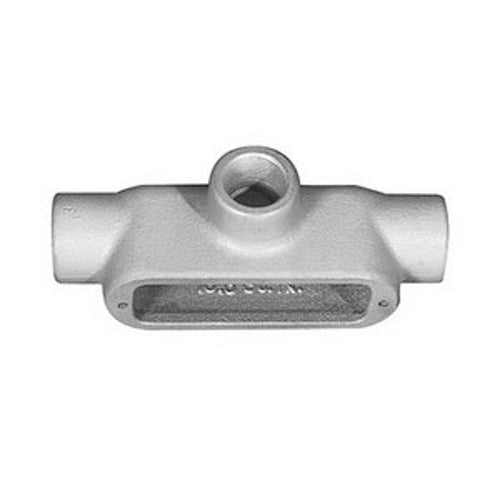

Appleton T38 1-IN CND BDY Type T Conduit Outlet Body

Product Description

The Appleton T38 is a one-inch conduit outlet body designed for use with rigid steel conduit and intermediate metal conduit (IMC). This outlet body is made from Grayloy-Iron, which provides durability and strength in a variety of electrical installations. Its dimensions are seven point five six inches in length, two point seven eight inches in width, and two point two eight inches in height. The product features a tapered female threaded connection for secure fittings.

• Hub Size: 1 inch
• Form: 8
• Triple-Coat Finish for added protection

Product Highlights

This outlet body serves multiple functions including making bends in conduit systems, serving as pulling fittings, and providing openings for splicing. It is compliant with UL standards.

Product Information

Standard Information

• Manufacturer: Appleton
• Material: Grayloy-Iron

Technical Specifications

• Type: Type T Conduit Outlet Body
• Color: Gray
• Finish: Triple-Coat (Zinc Electroplate; Chromate and Epoxy Powder Coat)
• Weight: 2.666 lbs
• Height: 2.28 inches
• Width: 2.78 inches
• Length: 7.56 inches
• Application: For Use With Rigid Steel Conduit And IMC
