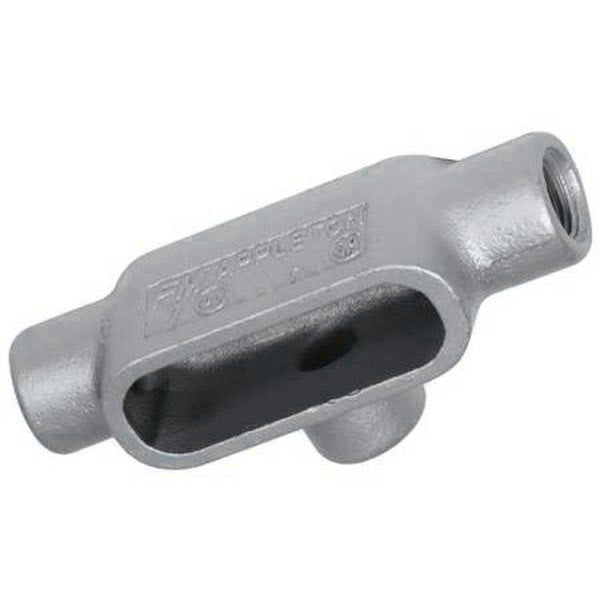

Appleton T27 Type T Conduit Outlet Body, 3/4 in Hub, Form 7, 19.5 cu-in Capacity

Product Description

The Appleton T27 conduit outlet body is designed for use in rigid conduit applications. This component provides a 3/4 inch hub and has a capacity of nineteen point five cubic inches. It is made of Grayloy iron with a finish of aluminum enamel and zinc electroplating, ensuring durability in various conditions.

• Flat back design allows for improved wiring capacity and surface mountings.
• Interchangeable with other manufacturers’ Form 7 conduit bodies.
• Clearly marked internal volume and wire capacity on the casting.

Product Highlights

This conduit body is suitable for wet locations when used with gasketed covers.

Product Information

Standard Information

• Brand: Appleton
• MPN: T27

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 19.5 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Material: Grayloy Iron
• Dimensions: 6-1/4 in L x 2-5/8 in W x 2 in H
• Hub Size: 3/4 in
• Mounting Type: Surface
• Number of Hubs: 3
• Finish: Aluminum Enamel/Zinc Electroplated
• Enclosure: NEMA FB-1/FB-2.10
• Mfg Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 514A File No. E18095
