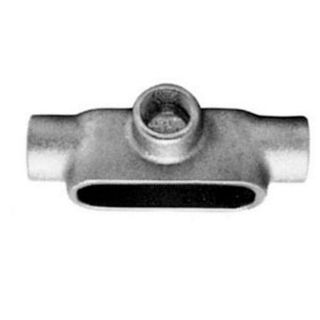

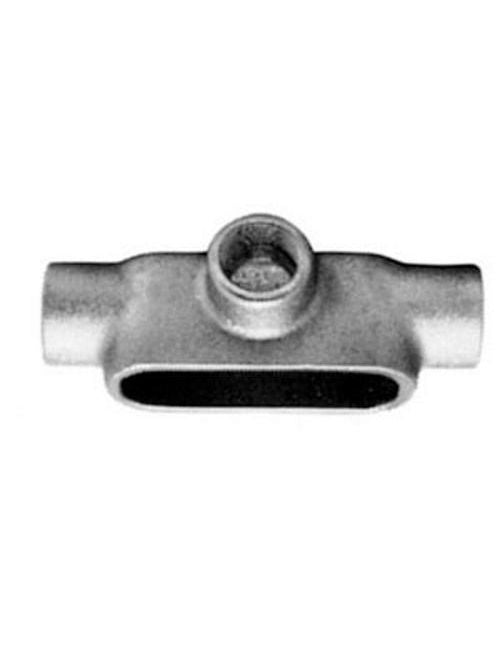

Appleton T17SA Type T Conduit Outlet Body 1/2 Inch Form 7

Product Description

The Appleton T17SA is a Type T conduit outlet body designed for efficient conduit runs. This outlet body features a half-inch hub and is crafted from durable cast aluminum with an epoxy powder coating, ensuring longevity and resistance to environmental factors.

• Constructed from cast aluminum for strength and durability
• Epoxy powder coating finish protects against corrosion
• Designed for surface mounting with a NEMA FB-1 enclosure

Product Highlights

The Appleton T17SA is ideal for connecting and changing the direction of conduit systems. It serves as a pulling fitting and allows access to conductors for splicing and maintenance.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Capacity: 6 cu-in
• Hub Size: 1/2 inch
• Material: Cast Aluminum
• Enclosure: NEMA FB-1
• Finish: Epoxy Powder Coated
• Dimensions: 5.63 inches L x 2.44 inches W x 1.75 inches H
• Number of Hubs: 3
• Connection Type: Tapered FNPT
