Appleton T17 Type T unilets Conduit Outlet Body 1/2 in Hub Form 7

Product Description

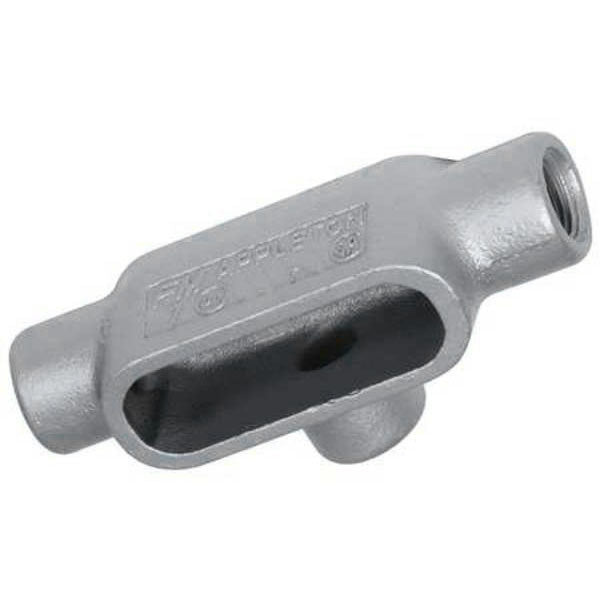

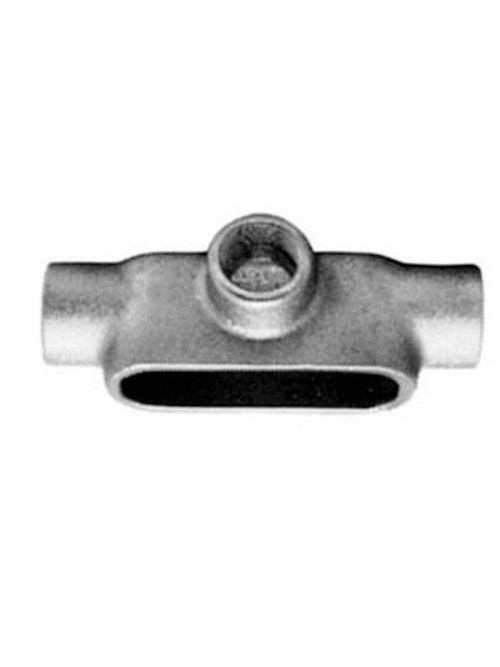

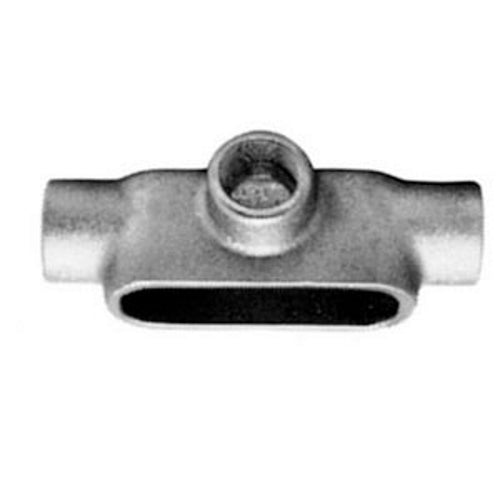

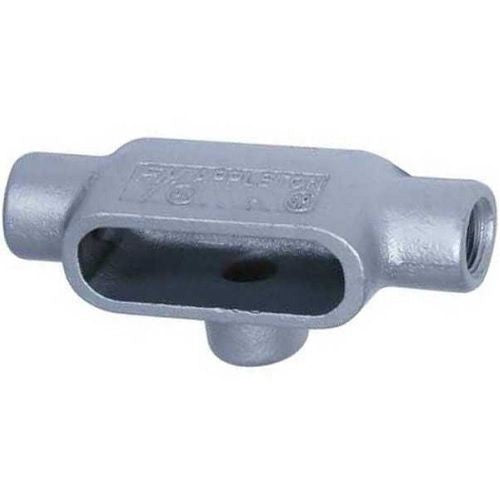

The APPLETON T17 is a Type T UNILETS conduit outlet body with a 1/2 inch hub and Form 7 form. It facilitates changes in conduit direction and branch connections. This conduit body serves as a pulling fitting, providing conductor access for splicing and maintenance. It has a capacity of 6 cu-in and is suitable for rigid steel, rigid aluminum conduit, and IMC applications.

• Features a flat back design for increased wiring capacity and surface mounting.
• Offers complete interchangeability with other manufacturers’ Form 7 conduit bodies.
• Constructed from Grayloy iron with a triple-coated finish for corrosion resistance.

Product Highlights

The APPLETON Type T conduit outlet body is designed for durability and ease of use in various conduit systems.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T17
• Country of Origin: MX

Technical Specifications

• Form: Form 7
• Capacity: 6 cu-in
• Hub Size: 1/2 in
• Material: Grayloy Iron
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Number of Hubs: 3
• Connection Type: Tapered FNPT
• Application: For Rigid Steel/Aluminum and IMC Conduit
• Access Opening Side: Side
• Configuration: T
• Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
• Hub Location: Tee
• Installation: Threaded
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Applicable Standard: NEMA FB-1
• Finish: Triple Coated
• Type: Type T Conduit Outlet Body
• Trade Size: 1/2 Inch
• Sub Brand: UNILETS
• Standard & Approvals: UL 514A/514B/E2527, CSA C22.2 No. 18.3, CSA 065183
