Appleton T125-M BODY OUT CONDUIT 1-1/4IN FORM 35 33CU-IN

Product Description

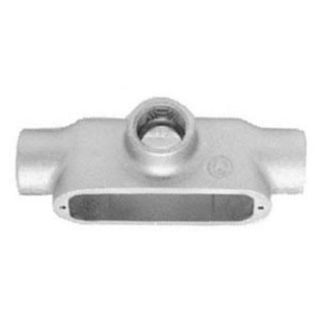

The Appleton T125-M is a Type T conduit outlet body designed for one and one-quarter inch hubs. This conduit body has a capacity of thirty-three cubic inches and is made from malleable iron. The unit features a triple-coated finish for high corrosion resistance. The T125-M allows for efficient connections and changes in conduit runs. Its design supports easy installation with three hubs that provide access for electrical conductors.

• Smooth, rounded integral bushing in hubs protects conductor insulation.
• Accurate tapped, tapered threads ensure tight and rigid connections.
• Meets NEMA FB-1 standards and is UL listed.

Product Highlights

The Appleton T125-M conduit body is built for durability and functionality. Its malleable iron construction offers high tensile strength, making it suitable for various applications where reliability is crucial.

Product Information

Standard Information

• Manufacturer: Appleton
• Part Number: T125-M

Technical Specifications

• Form Type: Form 35
• Hub Size: 1-1/4 inches
• Capacity: 33 cubic inches
• Finish: Triple-Coated
• Number of Hubs: 3
• Connection Type: Tapered FNPT
• Dimensions: 2.56 inches height
• Enclosure Rating: NEMA FB-1
