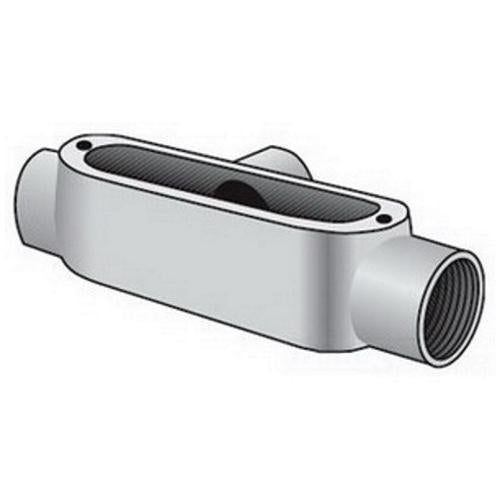

Appleton T-75 Conduit Outlet Body Type T (3 Hubs, 7 cu-in)

Product Description

The Appleton T-75 is a Type T conduit outlet body (O-Z/Gedney Spec 5) with three tapered FNPT hubs and a 7 cu-in internal volume. Constructed of Form 35 malleable iron with an aluminum enamel/zinc electroplated finish, it provides a NEMA FB-1 enclosure for surface mounting. Dimensions are 6-1/8 in L x 1-5/8 in H and it accommodates up to three 6 AWG conductors; raintight when used with an Appleton cover and gasket.

• Form 35 malleable iron construction with aluminum enamel/zinc electroplated finish; NEMA FB-1 enclosure
• Three tapered FNPT hubs for conduit connection; surface mount; dimensions 6-1/8 in L x 1-5/8 in H
• 7 cu-in internal volume, conductor capacity up to 3 (6 AWG); raintight when used with Appleton cover and gasket

Product Highlights

Form 35 malleable iron, 7 cu-in capacity, 3 tapered FNPT hubs, NEMA FB-1 raintight with cover

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T-75
• Country of Origin: Mexico

Technical Specifications

• MPN: T-75
• Brand: Appleton
• Manufacturer: Appleton
• Product Type: Conduit outlet body (Type T)
• Specification Standard: O-Z/Gedney Spec 5
• Form: Form 35 Unilet
• Material: Malleable iron
• Finish: Aluminum enamel / zinc electroplated
• Number of Hubs: 3
• Connection Type: Tapered FNPT
• Internal Volume: 7 cu-in
• Conductor Capacity: 3 (6 AWG)
• Enclosure Rating: NEMA FB-1
• Mounting Type: Surface mount
• Dimensions: 6-1/8 in L x 1-5/8 in H
• Raintight: Yes, when used with Appleton cover and gasket
• Application: Rigid/IMC conduit applications; access for pulling, splicing, and maintenance
• Certifications: UL File No. E18095; CSA C22.2 No. 18/009795
• Standards: ARRA Compliant; Federal Specification A-A-50563; Hazardous Locations Class 1, Div 2 per NEC Section 501-4(B)
• Country of Origin: MX
