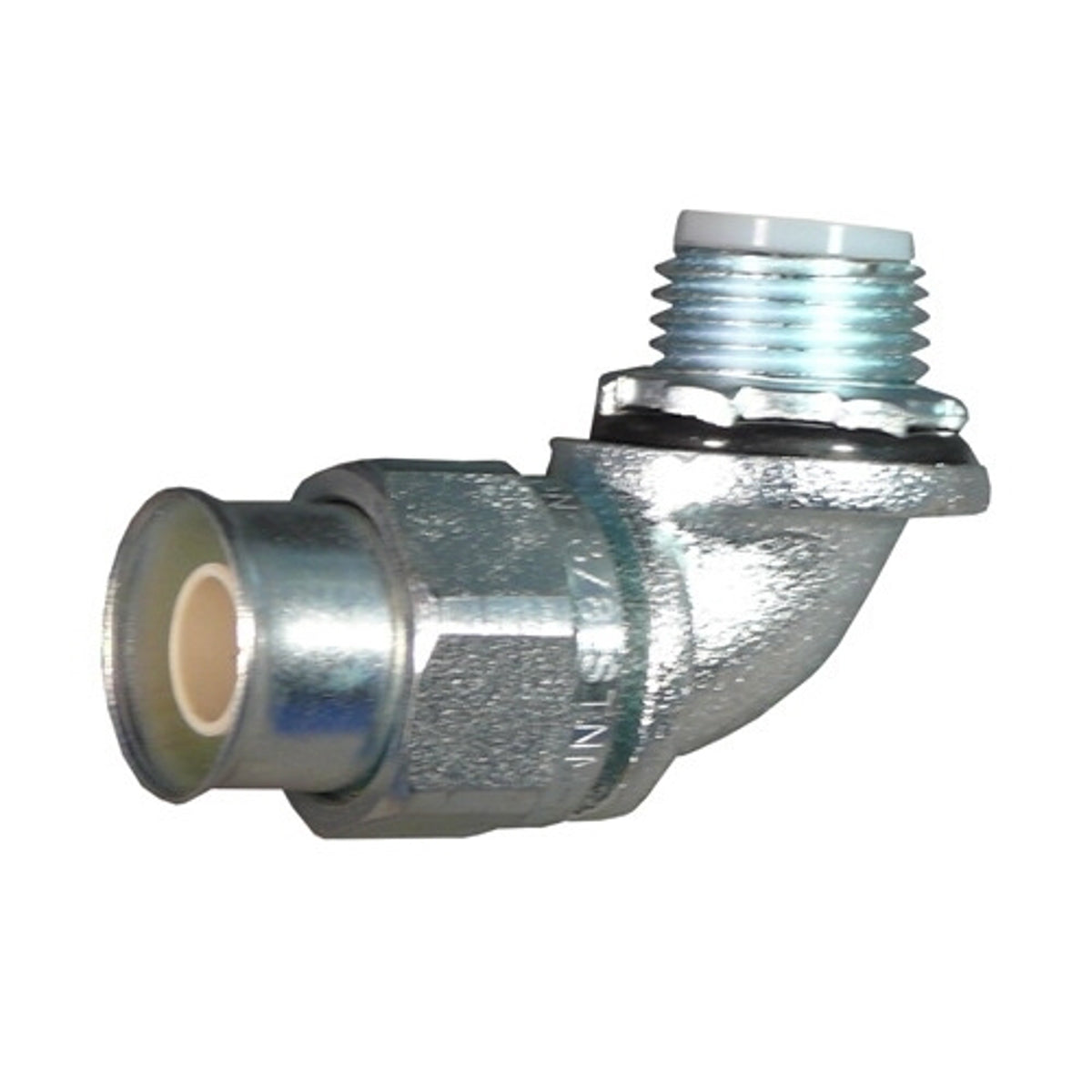

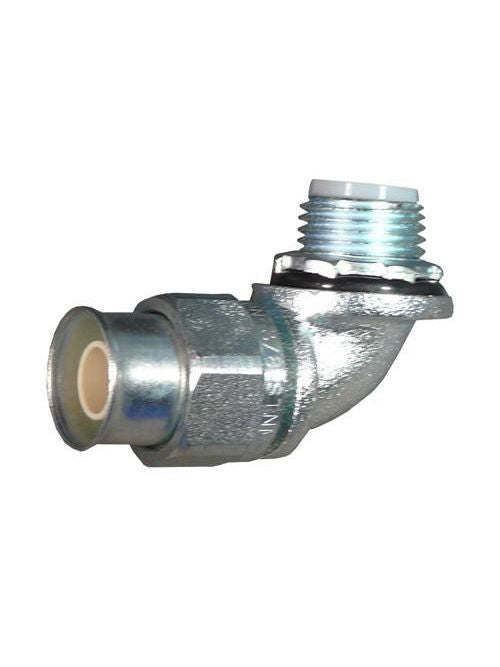

Appleton STNM-90125 STNM Series 90 DEG Liquidtight Connector 1-1/4 IN

Product Description

The Appleton STNM-90125 STNM Series 90 DEG Liquidtight Connector, size 1-1/4 IN, is designed for connecting to Type A flexible non-metallic conduit. It eliminates common connection problems and assures a liquidtight seal against oil, water, dirt, and chemicals. The connector features an insulated throat and a steel body, compression nut and sleeve.

• Eliminates common connection problems and assures a liquidtight seal
• Deep threaded ferrule bites into the inner wall of the conduit
• Sleeve separates the STNM series apart from ordinary connectors

Product Highlights

The Appleton STNM-90125 ensures a secure, liquidtight connection for flexible non-metallic conduits, offering ease of assembly and reliable performance in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STNM-90125
• Country of Origin: MX

Technical Specifications

• Angle: 90 deg
• Series: STNM
• Material: Steel
• Trade Size: 1-1/4 in
• Country of Origin: MX
• Suitable For Use With: Type A Flexible Non-Metallic Conduit
• Size: 1-1/4 IN
• Type: STNM Series 90 DEG Liquidtight Connector
• Thread Length: 3/4 IN
• Applications: For Connecting To Type A Flexible Nonmetallic Conduit
• Catalog Number: STNM-90125
• Manufacturer: Appleton Electric
• Application: For Connecting To Type A Flexible Nonmetallic Conduit
• Insulation: Insulated Throat
• Special Features: Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals; The positive, pull out proof seal formed by a STNM connector begins with its deep-threaded ferrule that bites into the inner wall of the conduit; The sleeve separates the STNM series apart from ordinary connectors; The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness; The nut rides only on the sleeve and not on the conduit; It cannot bend or twist the conduit and thereby protects wiring; When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing; Ease of assembly and disassembly of STNM connectors permits make-up of harnesses in advance for fast, simple connections during production line assemblies;
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178
• UPC: 781381238915
• GTIN: 00781381238915
• Item Type: STNM Series 90 DEG Liquidtight Connector
• Throat Type: Insulated
• Used On: Flexible Non-Metallic Liquidtight Type A Conduit
• Diameter: 1 1/4 in
