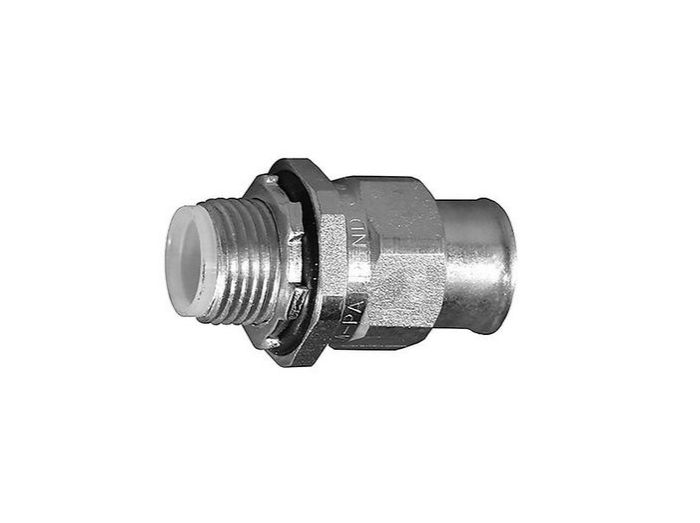

Appleton STNM-90100 STNM Series Liquidtight Connector 1 in 90 deg

Product Description

The Appleton STNM-90100 STNM Series liquidtight connector eliminates common connection problems and assures a liquidtight seal against oil, water, dirt, and chemicals. Designed for use with Type A flexible non-metallic conduit. The connector features a steel body, compression nut, and sleeve, along with a neoprene O-ring and nylon ferrule. It has an insulated throat and a 90-degree angle.

• Eliminates common connection problems and assures a liquidtight seal
• Features a deep-threaded ferrule that bites into the inner wall of the conduit for a pull-out proof seal
• Exclusive floating sleeve reduces installation time when connecting to Type A nonmetallic flexible conduit

Product Highlights

This Appleton liquidtight connector provides a secure and reliable connection for flexible non-metallic conduit, ensuring protection against environmental contaminants.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STNM-90100
• Country of Origin: MX

Technical Specifications

• Series: STNM
• Angle: 90 deg
• Material: Steel
• Trade Size: 1 in
• Suitable For Use With: Type A Flexible Non-Metallic Conduit
• Insulation: Insulated Throat
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178
• Application: For Connecting To Type A Flexible Nonmetallic Conduit
• Type: 90 Deg
• Used On: Flexible Non-Metallic Liquidtight Type A Conduit
• Throat Type: Insulated
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: No
• Approvals: CSA, UL
