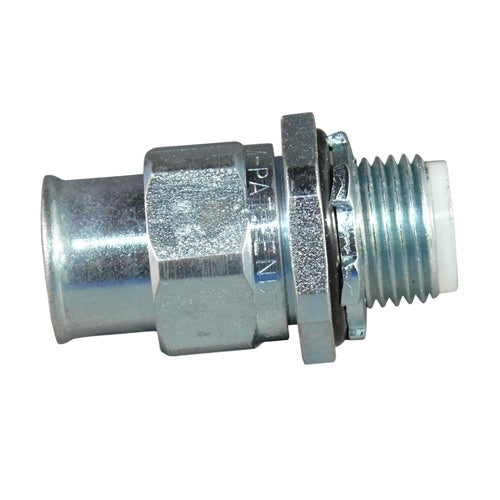

Appleton STNM-75 Flexible Non-Metallic Straight Type A Liquidtight Connector 3/4 inch

Product Description

The Appleton STNM-75 Flexible Non-Metallic Straight Type A Liquidtight Connector is designed for use with flexible non-metallic conduits. This connector is made to create tight seals that protect against oil, water, dirt, and chemicals.

• Trade size: 3/4 inch
• Material: Steel body with neoprene O-ring and nylon ferrule
• Meets Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18 standards

Product Highlights

This connector is ideal for connecting to Type A flexible non-metallic conduits. Its insulated throat helps to ensure safe and reliable connections in various settings.

Product Information

Standard Information

• Catalog Number: STNM-75
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Steel (Body/Compression Nut/Sleeve), Neoprene (O-Ring), Nylon (Ferrule)
• Insulation: Insulated Throat
• Dimensions: Length 2.59 inches, Height 1.63 inches, Thread Length 0.59 inches
• Application: For connecting to Type A flexible non-metallic conduit
• Country of Origin: Mexico
• UPC: 781381238793
• GTIN: 00781381238793
