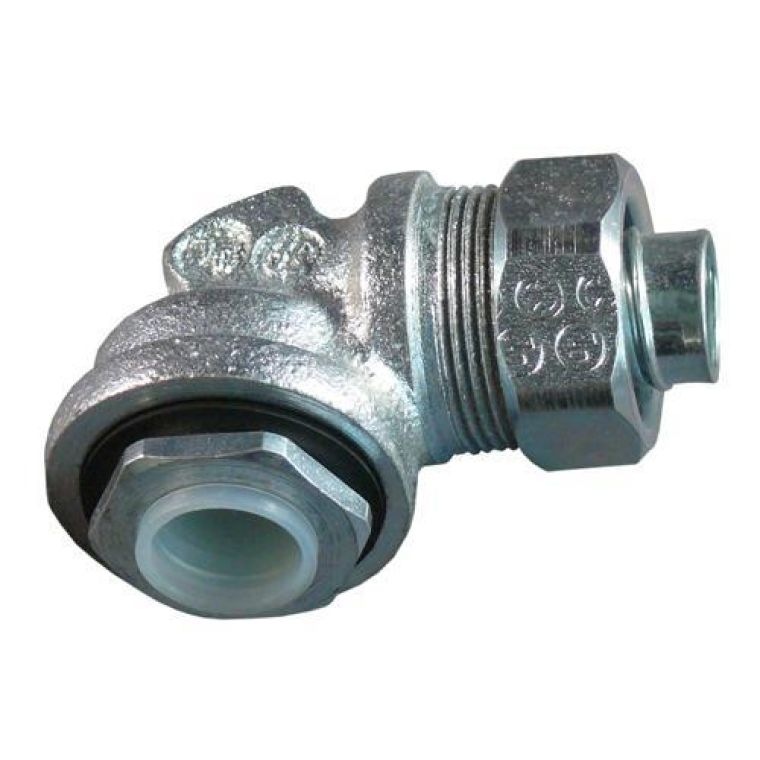

Appleton Stn-9075 Liquidtight Connector, Stn Series, 90°, 3/4 inches

Product Description

The APPLETON STN-9075 liquidtight connector is part of the STN Series, featuring an insulated 90-degree design and a 3/4" size. Constructed from malleable iron, it's designed for liquidtight flexible metal conduit connections to sheet metal enclosures. It terminates liquidtight flexible metal conduit (LFMC) and liquidtight flexible nonmetallic conduit (LFNC) into an enclosure or junction box.

• Terminates liquidtight flexible metal conduit (LFMC) and liquidtight flexible nonmetallic conduit (LFNC) into an enclosure or junction box
• Allows direction changes at the point of entry
• Rated concretetight, oiltight, and raintight per ul 514b for wet, oily, and concrete-encased installations

Product Highlights

This 90 degree liquid-tight connector is concretetight, oiltight, and raintight per UL 514B for demanding industrial environments. Its insulated throat features a plastic liner that protects conductor insulation from abrasion.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STN-9075
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Diameter: 3/4 in
• Brand: Appleton Electric
• MPN: stn9075
• UPC: Does not apply
• Country of Origin: United States
• Brand Name: Appleton
• Brand Part Number: STN-9075
• Conduit Type: LFMC / LFNC
• Connection Orientation: 90 deg
• Enclosure Rating: Concretetight / Oiltight / Raintight
• Enclosure Rating Specs: UL 514B
• Finish: Triple Coated
• Fitting Type: Connector
• Hazard Rating Specs: Class I, Division 2
• Insulated: Yes
• Specifications Met: UL 514B, Class I, Div 2, CSA 065178, CSA C22.2 No. 18.3, UL File No. E14814
• Trade Size: 3/4"
