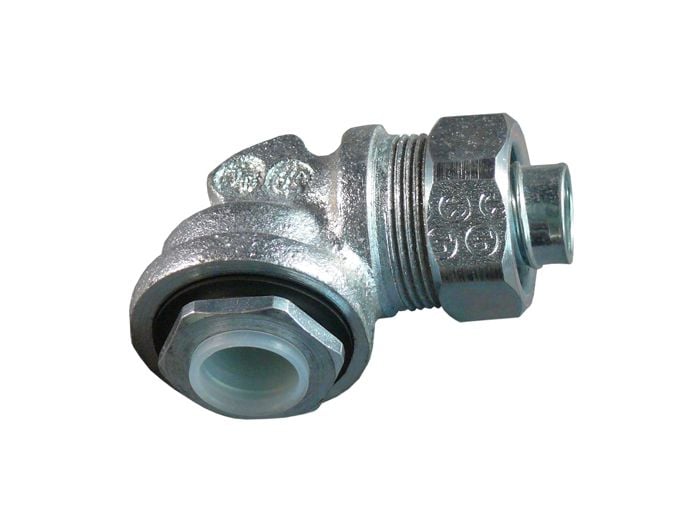

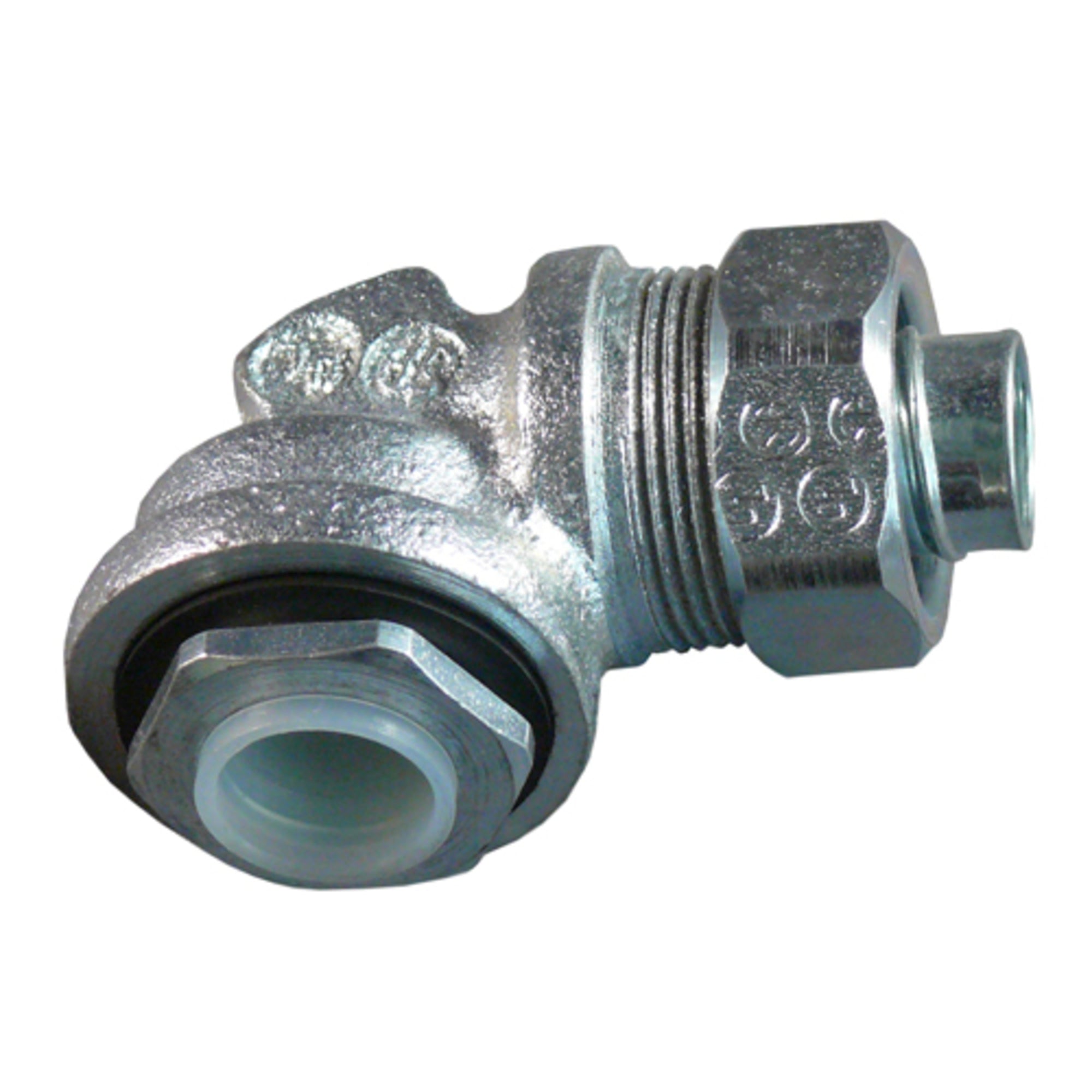

Appleton STN-9050 1/2 inches 90D Insulated Liquidtight Connector

Product Description

The APPLETON STN-9050 is a liquidtight flexible conduit connector designed for use with liquidtight flexible metal conduit in sheet metal enclosure installations. Features a flame resistant, insulating insert that is recessed into a hex head wedge adapter that protects against wire damage. It is suitable for wet locations.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Space saving hex hub wedge adapter fits nearly flush against inside walls of enclosures, providing maximum wiring room

Product Highlights

This liquidtight, raintight, oiltight, and concretetight connector ensures a secure and protected connection in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STN-9050
• Country of Origin: MX

Technical Specifications

• Manufacturer Part Number: STN-9050
• Manufacturer: Appleton
• Product Series: Liquidtight STN
• Family Series: Appleton Fittings, Liquidtight STN Series
• Description: Liquidtight Flexible Conduit Connector, Type 90 Deg, Throat Type Insulated, Trade Size 1/2 Inch, Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Standard Package 50, Approval UL 514B, CSA C22.2, Used On Liquidtight Flexible Metal
• Conduit/Cable Type: LFMC (Liquid Tight Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: 90 "
• Trade Size: 1/2 "
• Hub Size: 1/2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: Yes
• Approvals: CSA, UL
• Finish: Triple Coated
• Insulation: Insulated
• Special Features: Chromate/epoxy powder coated/zinc electroplated finish Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground Flame resistant, insulating insert recessed into hex head wedge adapter protects against wire damage without reduction in throat diameter space saving hex hub wedge adapter that fits nearly flush against inside walls of enclosures, providing maximum wiring room Suitable for wet locations Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Type: Liquidtight Oiltight Raintight
• Diameter: 1/2 in
• USED ON: FLEXIBLE METALLIC LIQUID TIGHT CONDUIT
• THROAT TYPE: INSULATED
• ENVIRONMENTAL CONDITIONS: DIRT, DUST, FUME, OIL TIGHT, RAIN TIGHT, WET LOCATION
