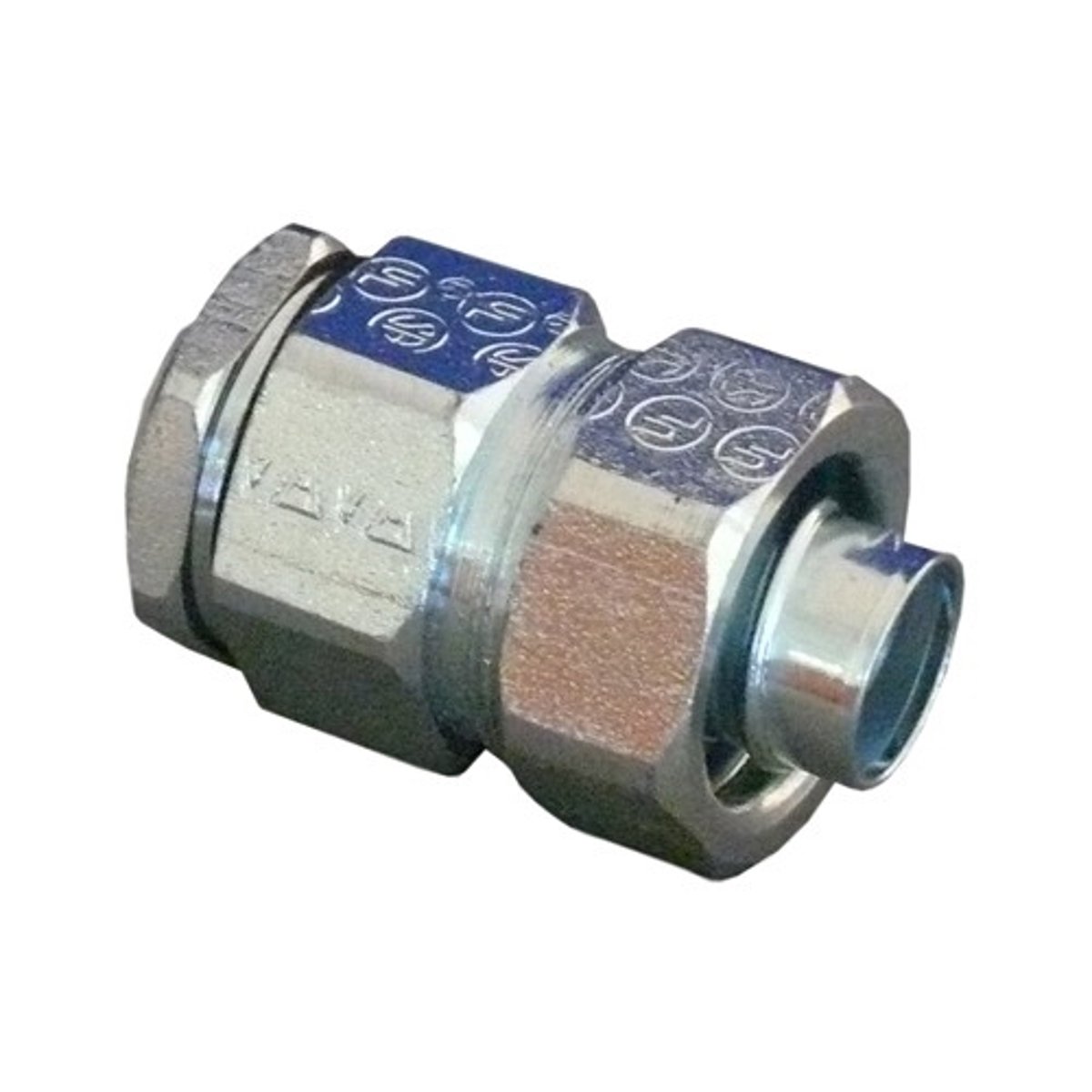

Appleton STN-75 Straight Liquidtight Connector 3/4 inch

Product Description

The APPLETON STN-75 is a straight liquidtight connector designed for connecting liquidtight flexible metal conduit to sheet metal enclosures. Features include a long ferrule with pronounced threads for enhanced pull-out resistance, and a hex-hub wedge adapter for space-saving installation. Suitable for wet locations.

• Provides over four times UL pull-out requirements
• Offers maximum surface contact for better sealing
• Flame resistant, insulating insert protects against wire damage

Product Highlights

This liquidtight connector ensures a secure and reliable connection in demanding environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STN-75
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: STN-75
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Liquidtight Flexible Metal Conduit Connections To Sheet Metal Enclosure
• Finish: Zinc Electroplate
• Insulation: Insulated Throat
• Material: Steel
• Special Features: Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Flame resistant, insulating insert recessed into hex-head wedge adapter protects against wire damage, without reduction in throat diameter; Space-saving hex-hub wedge adapter fits nearly flush against inside walls of enclosures, providing maximum wiring room; Suitable for wet locations
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• UPC: 781381684804
• GTIN: 00781381684804
• Item Type: STN Series Straight Liquidtight Connector
• Size: 3/4 IN
• Type: STN Series Straight Liquidtight Connector
• Trade Size: 3/4 Inch
• Product Series: Liquidtight STN
• Family Series: Appleton Fittings, Liquidtight STN Series
• Conduit/Cable Type: LFMC (Liquid Tight Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Hub Size: 3/4 "
• Hub Type: Male NPT Thread
• Grounding: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: Yes
• Approvals: CSA, UL
• MPN: STN75
• Insulated Throat: Yes
• Split Crucible: S
