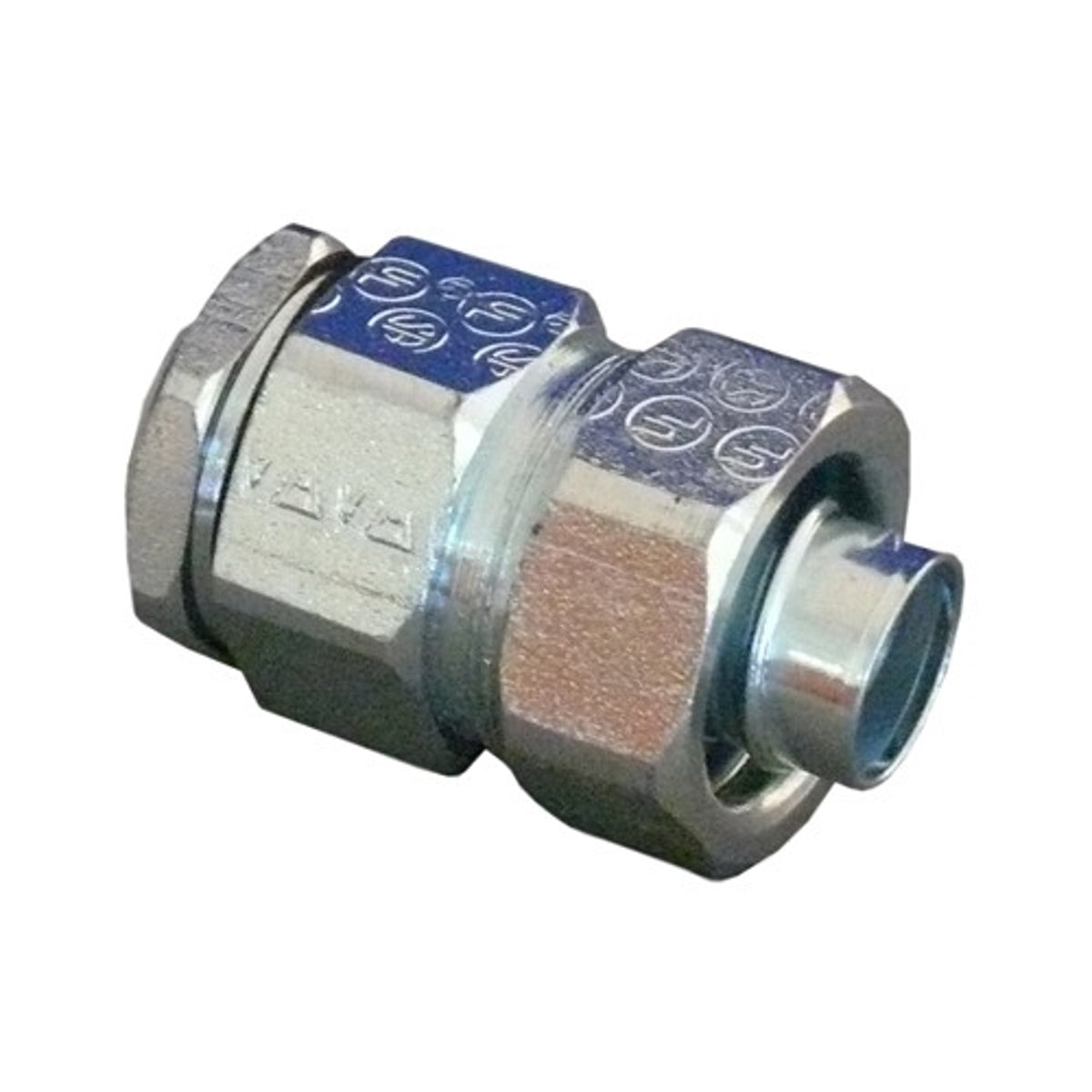

Appleton STN-50 1/2 inches lfmc Hub Adapter

Product Description

The APPLETON STN-50 is a STN Series Straight Liquidtight Connector with a size of 1/2 IN. Constructed from steel with a zinc electroplate finish and insulated throat. It is designed for liquidtight flexible metal conduit connections to sheet metal enclosures. Dimensions are 1.44 IN Length X 1-1/4 IN Height.

• Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements
• Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground
• Flame resistant, insulating insert recessed into hex-head wedge adapter protects against wire damage, without reduction in throat diameter

Product Highlights

Appleton STN-50 liquidtight connector ensures a secure and reliable connection for flexible metal conduits in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STN-50
• Country of Origin: MX

Technical Specifications

• Size: 1/2 IN
• Type: STN Series Straight Liquidtight Connector
• Brand: Appleton
• Finish: Zinc Electroplate
• Material: Steel
• Applications: For Liquidtight Flexible Metal Conduit Connections To Sheet Metal Enclosure
• Catalog Number: STN-50
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Insulation: Insulated Throat
• Special Features: Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Flame resistant, insulating insert recessed into hex-head wedge adapter protects against wire damage, without reduction in throat diameter; Space-saving hex-hub wedge adapter fits nearly flush against inside walls of enclosures, providing maximum wiring room; Suitable for wet locations
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• UPC: 781381684750
• GTIN: 00781381684750
• Item Type: STN Series Straight Liquidtight Connector
• Brand Name: Appleton
• Sub_Brand: Appleton
• Trade_Size: 1/2
• Connector Type: Adapter
• Manufacturer Part Number: STN50
• Angle: Straight
• Series: STN
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• UNSPSC: 39121420
• EU RoHS Indicator: Y
