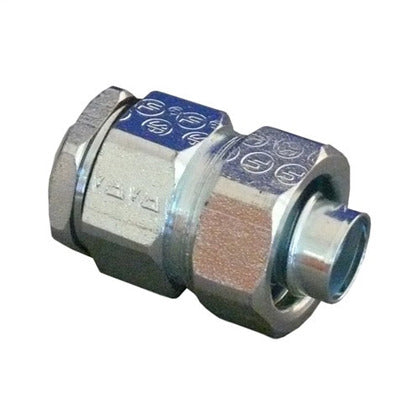

Appleton STN-100 Straight Insulated Liquidtight Connector 1 Inch

Product Description

The APPLETON STN-100 is a 1" straight insulated liquidtight connector designed for use with liquidtight flexible metal conduit in sheet metal enclosure installations. It features a flame resistant, insulating insert that is recessed into a hex head wedge adapter that protects against wire damage.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Space saving hex hub wedge adapter fits nearly flush against inside walls of enclosures, providing maximum wiring room

Product Highlights

Appleton STN series connectors are liquidtight, raintight, oiltight and concretetight and suitable for wet locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STN-100
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: STN-100
• Manufacturer: Appleton
• Product Series: Liquidtight STN
• Family Series: Appleton Fittings, Liquidtight STN Series
• Conduit/Cable Type: LFMC (Liquid Tight Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Trade Size: 1 "
• Hub Size: 1 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Material: Steel
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: Yes
• Approvals: CSA, UL
• UPC: 781381684859
• Country of Origin: United States
• Model: STN-100
• Diameter: 1 in
