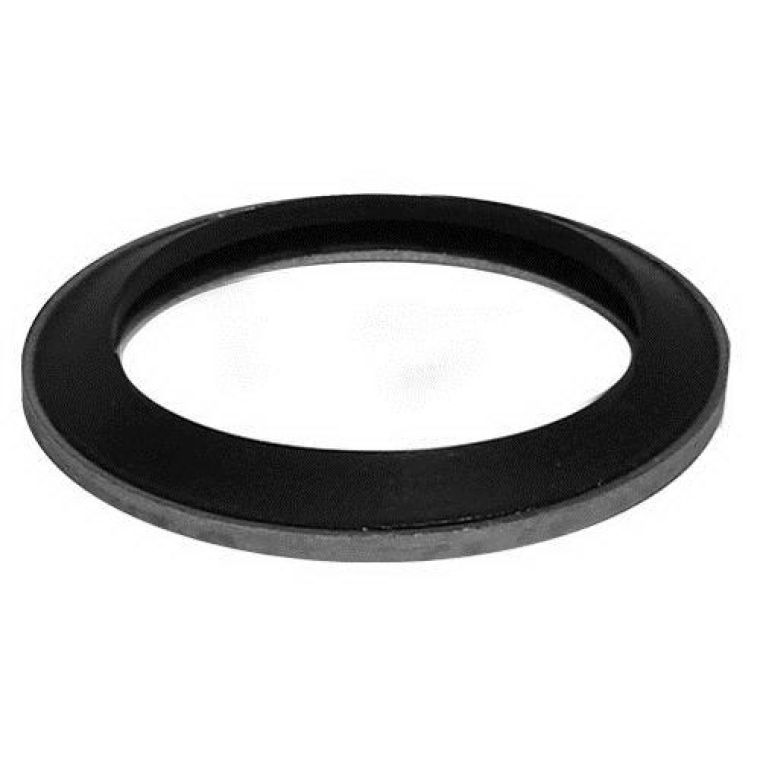

Appleton STG-350 Sealing Gasket 3-1/2 inches

Product Description

The APPLETON STG-350 sealing gasket is designed for use with liquidtight flexible metal conduit. It provides a positive seal between the connector shoulder and the sheet metal enclosure. It is made from steel-backed neoprene, providing a resilient, oil-resistant seal, and is suitable for wet locations. Used with 3.50 inch connector.

• Provides positive seal between shoulder of connector and sheet metal enclosure
• Trade Size: 3-1/2 Inch
• Material: Steel Backed Neoprene

Product Highlights

The APPLETON STG-350 ensures a secure, liquidtight seal for flexible metal conduit connections, maintaining the fitting assembly's oiltight and raintight rating.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STG-350
• Country of Origin: MX

Technical Specifications

• Diameter: 3 1/2 in
• Material: Neoprene
• Application: Provides positive seal between shoulder of connector and sheet metal enclosure. Used with 3.50 inch connector.
• Catalog Number: STG350
• Country of Origin: MX
• EU RoHS Indicator: C
• Height: 0.56 in
• Length: 6.40 in
• Standard: CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
• Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178RoHS CompliantNEC CompliantCEC Approved
• Type: Sealing Gasket Assembly for Liquidtight Flexible Metal Conduit Connectors
• UNSPSC: 31401505
• UPC 12: 781381289122
• Width: 5.90 in
• Brand: Appleton
• Manufacturer: Appleton
• Size: 3-1/2 in
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Conduit Type: LFMC / LFNC
• Fitting Subtype: LFMC Connector
• Fitting Type: Gasket
• Specifications Met: UL 514B, CEC Approved, CSA 065178, CSA C22.2 No. 18.3, NEC Compliant, UL File No. E14814
• Trade Size: 3-1/2"
