Appleton STG-300 sealing gasket 3 inches replacement STG300

Product Description

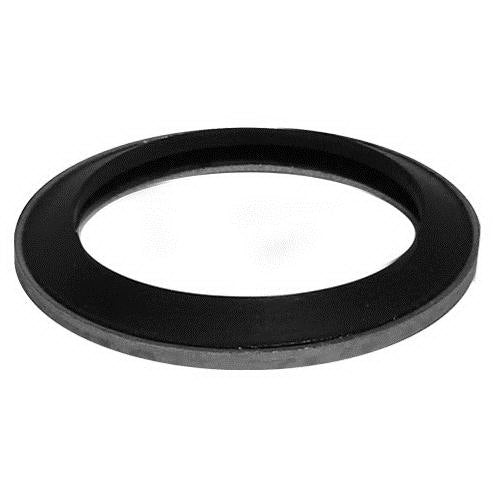

The Appleton STG-300 sealing gasket provides a positive seal between the connector shoulder and the sheet metal enclosure. It is designed for use with liquidtight flexible metal conduits. This sealing gasket is constructed with steel backed neoprene. It meets CSA C22.2 No. 18.3, CSA 065178, and NEMA FB-1 standards.

• Sealing Gasket
• For Liquidtight Flexible Metal Conduit
• Provides positive seal between shoulder of connector and sheet metal enclosure

Product Highlights

The Appleton STG-300 is ideal for creating a secure, liquidtight seal in various applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STG-300
• Country of Origin: MX

Technical Specifications

• Type: Sealing Gasket Assembly for Liquidtight Flexible Metal Conduit Connectors
• Brand: Appleton
• Color: Black
• Material: Steel Backed Neoprene
• Trade Size: 3 Inch
• Product UPC: 78138168435
• Applications: Provides positive seal between shoulder of connector and sheet metal enclosure. Used with 3.00 inch connector.
• Diameter: 3 in
• Standard: CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
• Part Number: STG300
• Catalog Number: STG300
• Country of Origin: MX
• EU RoHS Indicator: Y
• Height: 0.48 in
• Length: 5.90 in
• Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178RoHS CompliantNEC CompliantCEC Approved
• Width: 5.50 in
• Manufacturer: Appleton
• Size: 3 in
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Accessory Type: Conduit Gaskets
• Flexibility: Flexible
• Application: Liquidtight, Rain Tight, Hazardous Location
