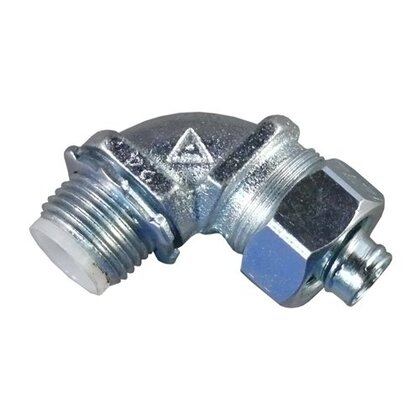

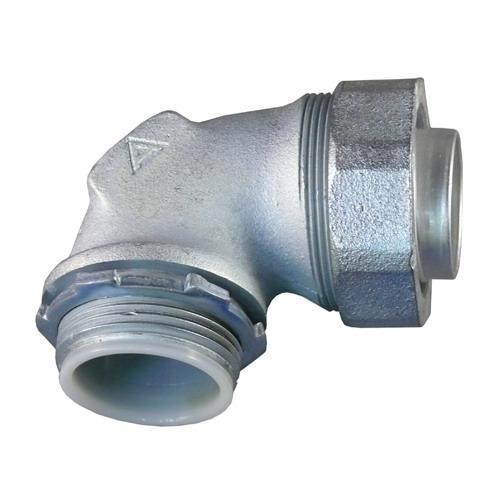

Appleton STB-90200 Conduit Connector 2 in 90 deg

Product Description

The APPLETON STB-90200 is a 2-inch, 90-degree liquid tight, oiltight, and raintight conduit connector. Constructed from malleable iron with a triple-coated finish, it's designed for use with liquid-tight flexible metallic conduit. This connector is suitable for machine tool building, motor and transformer terminations, robotics assembly, and air conditioning equipment installation.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Seals out oil, water, dust, dirt and fumes

Product Highlights

This liquid tight conduit connector ensures a secure and sealed connection in various industrial applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-90200
• Country of Origin: MX

Technical Specifications

• Angle: 90 deg
• Finish: Triple Coated
• Series: STB
• Material: Malleable Iron
• Trade Size: 2 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• application: Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation
• Brand: Appleton
• Part Number #: STB90200
• Connection: Threaded X Compression
• Country of Origin: MX
• Insulation: Insulated
• Special Features: Chromate/epoxy powder coated/zinc electroplated finish Compact design with small turning radius Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground Full, machined tapered threads (NPT) Polypropylene sealing ring with locknut standard Seals out oil, water, dust, dirt and fumes Suitable for wet locations Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Sub_Brand: Appleton
• Type: Liquidtight Oiltight Raintight
• Diameter: 2 in
• Application: For Liquidtight Flexible Metal Conduit
