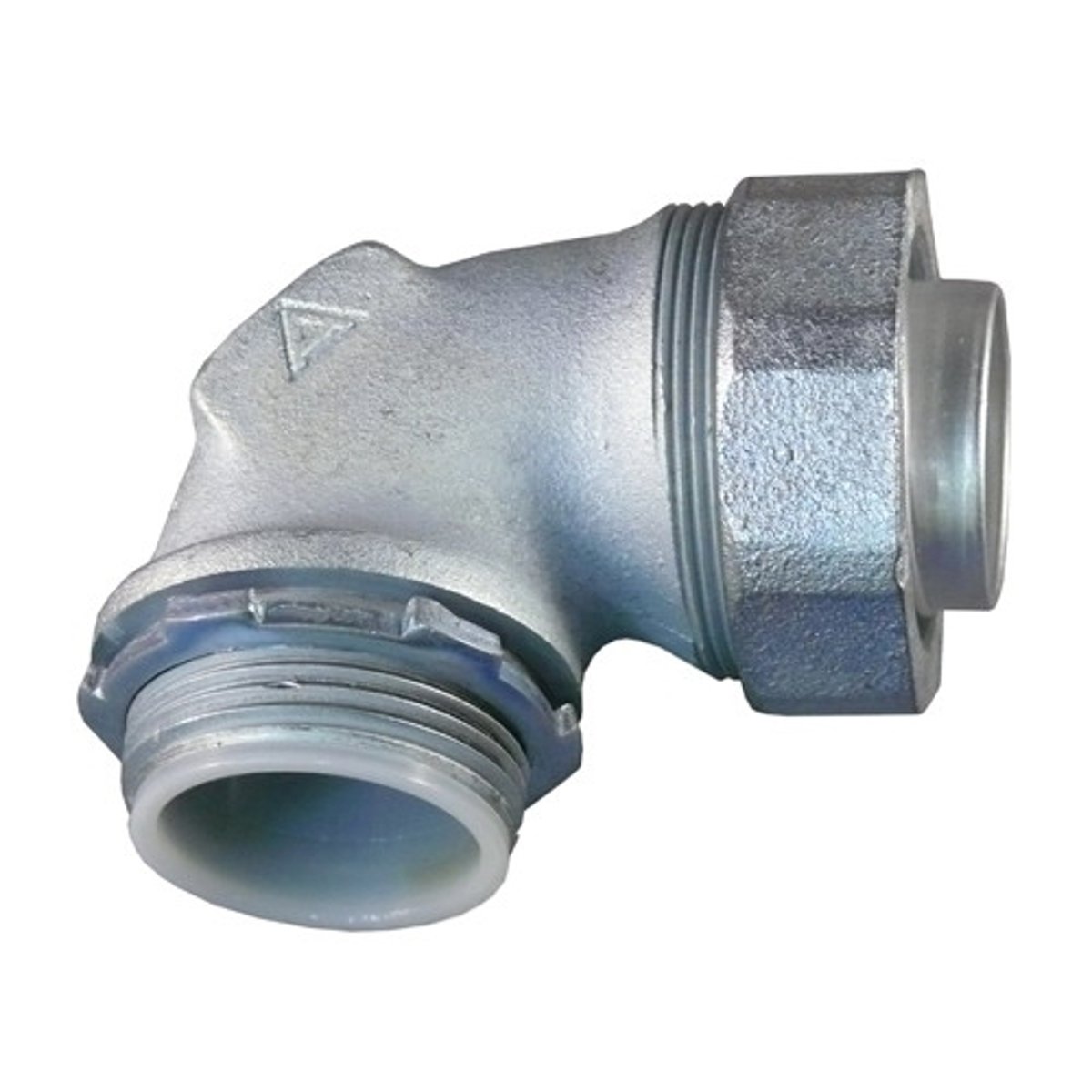

Appleton STB-90150 APN Liquid Tight Oiltight Raintight Conduit Connector 1-1/2 in

Product Description

Appleton STB-90150 is a liquid tight conduit connector designed for use with liquid tight flexible metallic conduits. This connector features a malleable iron construction, suitable for wet locations. The 90-degree angle design supports efficient installation in confined spaces.

• Unique long ferrule with enhanced threads for strong sealing
• Standard polypropylene sealing ring with locknut
• Approved for wet locations with high corrosion resistance

Product Highlights

This connector effectively seals out oil, water, dust, and fumes, making it ideal for various applications including motor terminations and air conditioning installations.

Product Information

Standard Information

• Type: Liquid Tight Oiltight Raintight
• Series: STB

Technical Specifications

• Trade Size: 1-1/2 inches
• Angle: 90 degrees
• Material: Malleable Iron
• Finish: Triple Coated
• Dimensions: 2.63 inches wide
• Country of Origin: MX
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Standards: UL 514B, CSA C22.2 No. 18.3, Class I, Div 2
