Appleton STB-75SR Liquidtight Flexible Series 3/4 IN

Product Description

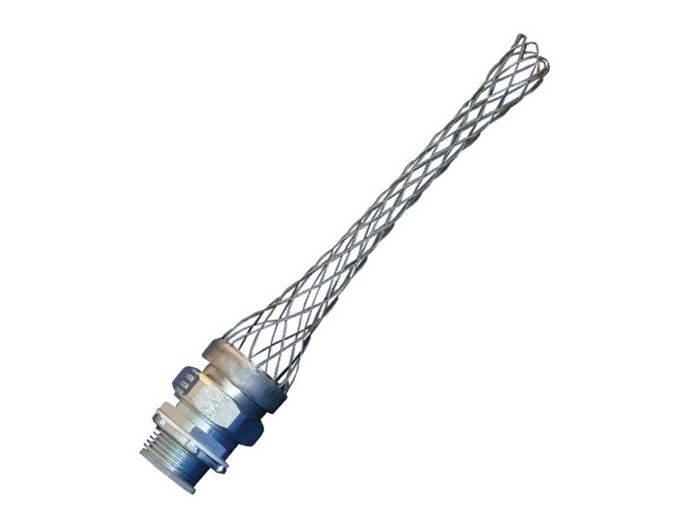

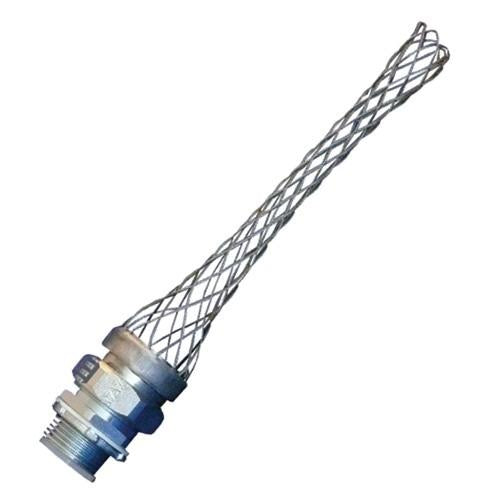

The APPLETON STB-75SR liquidtight flexible metal conduit connector with wire mesh strain relief is designed for use with liquidtight flexible metal conduit that is subjected to flexure, vibration, motion, or strain. It connects to threaded hubs and prevents pull-out of flexible conduit, alleviating flexing stress at the liquidtight connection.

• Stainless steel wire mesh prevents pull out of flexible conduit.
• Suitable for wet locations.
• Full, machined tapered threads (NPT).

Product Highlights

The Appleton STB-75SR ensures a secure connection in demanding environments, offering a reliable solution for liquidtight flexible metal conduit applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-75SR
• Country of Origin: MX

Technical Specifications

• Manufacturer Part Number: STB-75SR
• Manufacturer: Appleton
• Product Series: Liquidtight Flexible
• Family Series: Appleton Grips, Liquidtight Flexible Series
• Description: STB Series Straight Liquidtight Connector With Wire Mesh Strain Relief, Size: 3/4 IN, Material: Steel, Finish: Zinc Electroplate, Insulation: Insulated Throat, Dimensions: 1.5 IN Length X 1.5 IN Height, Thread Length: 0.63 IN, Outside Di
• Mounting: Stainless Steel Mesh
• Hub Size: 0.75 " NPT
• Approvals: CSA, UL
• Comments: Suitable for wet locations, Liquidtight, raintight, oiltight, and concretetight
• Cable Openings: 1.03 to 1.05 in
• Type: Insulated Throat Oiltight Raintight
• UNSPSC: 39121420
• Diameter: 3/4 in
• Material: Steel
• Angle: Straight
• Application: For Liquidtight Flexible Metal Conduit To Threaded Hubs
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: STB75SR
• Country of Origin: MX
• EU RoHS Indicator: C
• Insulation: Insulated Throat
• Series: STB
• Size: 3/4 IN in
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Standards: UL 514B, UL E14814, CSA C22.2 No. 18.3, CSA 065178, Class I, Division 2, RoHS Compliant
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Trade Size: 3/4 in
• Finish: Zinc Electroplated
