Brand: APPLETON
SKU: STB-75L
Availability: Out Of Stock
$30.34
$30.34
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

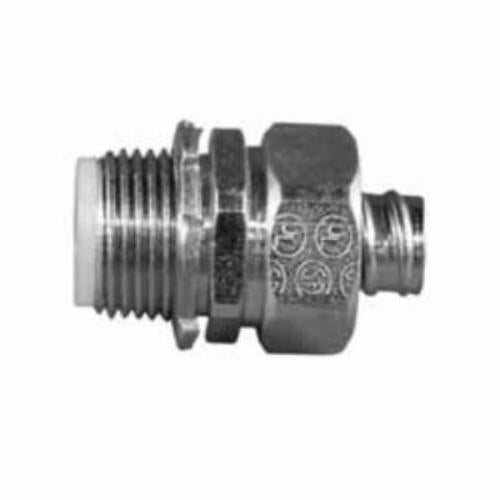

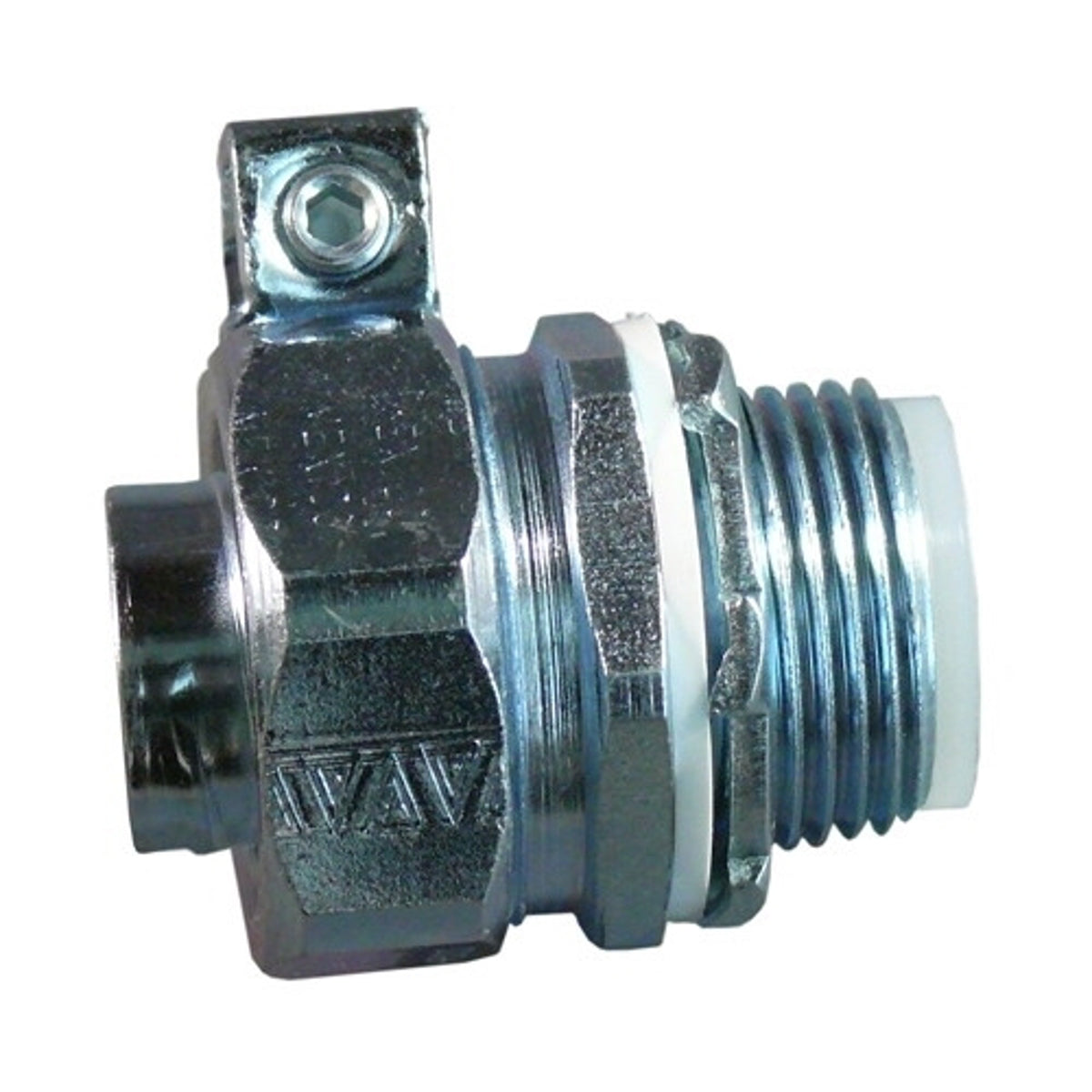

The Appleton STB-75L is a Class I Division 2 liquidtight connector suited for OEM equipment and harsh environments. With a steel body, crimpable ferrule, and compression nut, the ST connectors install quickly. This insulated straight connector is suitable for use with liquid tight flexible metal conduit. It offers a secure connection for various applications.

  • Malleable iron and/or steel construction, steel or aluminum ferrule, polypropylene sealing ring
  • Unique long ferrule with pronounced threads provides over four times UL pull out requirements
  • Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground

Product Highlights

The Appleton STB-75L ensures a secure, liquidtight connection with its robust construction and unique ferrule design, suitable for diverse industrial applications.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: STB-75L
  • Country of Origin: MX
Technical Specifications
Finish
Electroplated Zinc
Series
STB
Material
Steel
Trade Size
3/4 Inch
Country of Origin
MX
Suitable For Use With
Liquid Tight Flexible Metal Conduit Fitting
Size
3/4 IN
Type
STB Series Straight Liquidtight Connector
Product UPC
78138140349
12-Digit UPC
781381403498
Applications
For Liquidtight Flexible Metal Conduit
TC Connection
Threaded X Compression
Catalog Number
STB-75L
Manufacturer
Appleton Electric
Made in USA
No
Conductor Range
14 - 4 AWG
Connection
Threaded X Compression
Special Features
Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT); Steel compression nut
Standard
Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
UPC
781381403498
GTIN
00781381403498
Item Type
STB Series Straight Liquidtight Connector
Throat Type
Insulated with Ground Lug
Approval
UL 514B, CSA C22.2
Used On
Flexible Metallic Liquidtight Conduit
Diameter
3/4 in
WES Product code
APPCF2STB75L
