Appleton STB-4550 Insulated Throat 45 Degree Liquidtight Connector 1/2 Inch

Product Description

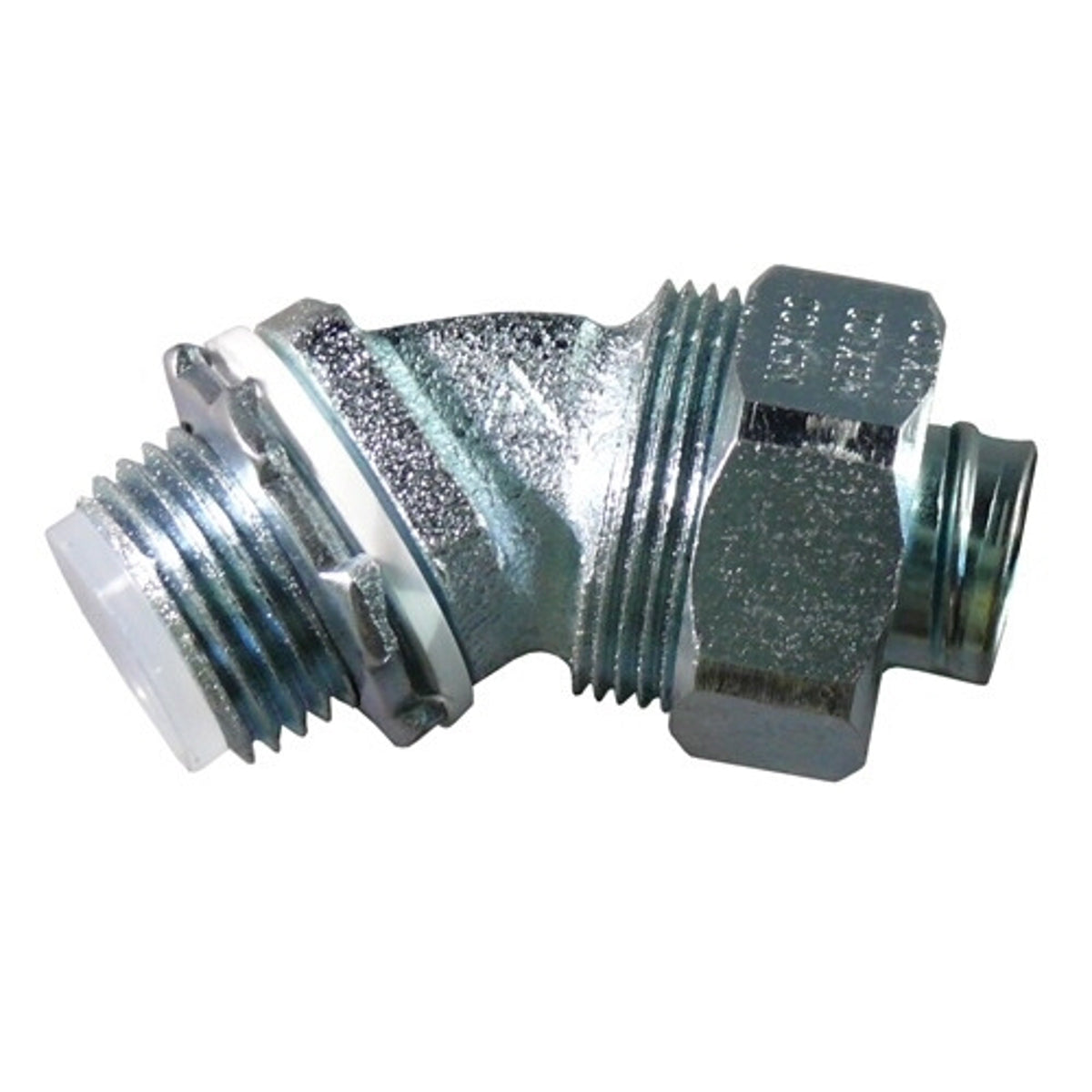

The Appleton STB-4550 is a 45 degree insulated throat liquidtight connector designed for use with flexible metal conduit. This connector features a threaded x compression connection method. Its body is made of malleable iron with a finish that includes chromate, epoxy powder coat, and zinc electroplating. The product meets rigorous standards, ensuring durability and reliability in challenging environments.

• Size: 1/2 inch
• Material: Malleable iron
• Thread length: 0.63 inch

Product Highlights

This connector is built for liquidtight flexible metal conduit applications. It ensures a secure and lasting connection in various working conditions.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: STB-4550

Technical Specifications

• Connection: Threaded x Compression
• Material: Malleable Iron
• Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3
• Country of Origin: Mexico
• Application: For Liquidtight Flexible Metal Conduit
• UPC: 781381681452
• Throat Type: Insulated
