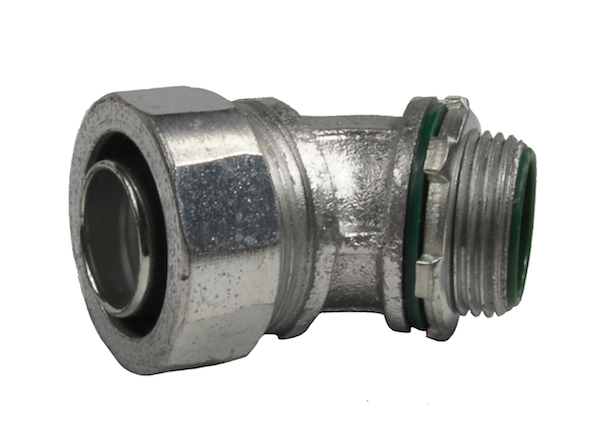

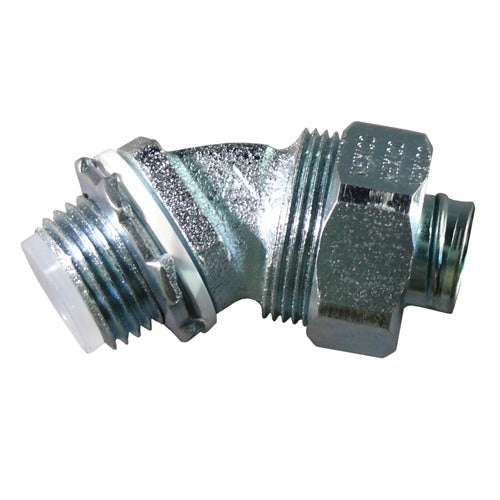

Appleton STB-4538 Liquid Tight Oiltight Raintight Connector 3/8 inches 45 deg

Product Description

The APPLETON STB-4538 is a liquid tight, oiltight, and raintight conduit connector. Designed for use with liquid tight flexible metallic conduit, it features a unique long ferrule with pronounced threads exceeding UL pull-out requirements. Constructed from malleable iron with a triple coated finish, it ensures a continuous, permanent, and positive metal-to-metal ground.

• Seals out oil, water, dust, dirt, and fumes.
• Features a polypropylene sealing ring with locknut standard.
• Suitable for wet locations.

Product Highlights

This connector is ideal for machine tool building, motor and transformer terminations, robotics assembly, and air conditioning equipment installation.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-4538
• Country of Origin: MX

Technical Specifications

• Angle: 45 deg
• Finish: Triple Coated
• Series: STB
• Material: Malleable Iron
• Trade Size: 3/8 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Application: Liquidtight Flexible Metal Conduit
• Type: Liquidtight Oiltight Raintight
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: STB4538
• Connection: Threaded X Compression
• EU RoHS Indicator: Y
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Standards: ARRA CompliantRoHS CompliantUL 514B File No. E14814CSA C22.2 No. 18.3CSA 065178Class I, Div 2
• UNSPSC: 39121420
• UPC 11: 78138168140
• UPC 12: 781381681407
• Brand: Appleton
• Manufacturer: Appleton
• Part Number: STB4538
• Category: Conduit & Fittings
• Item Subcategory: Conduit sealing fitting / device
• Family: STB
• Throat Type: Insulated
• Construction: 3-Piece Design
