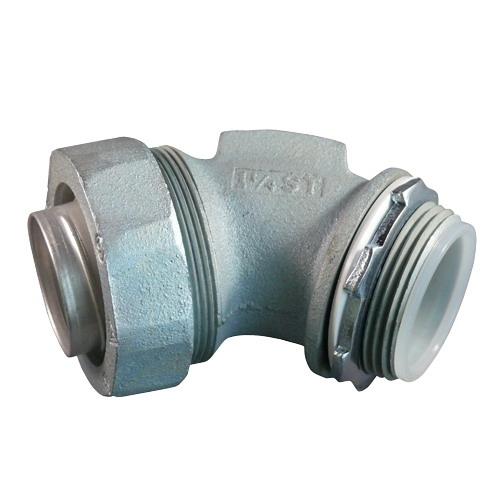

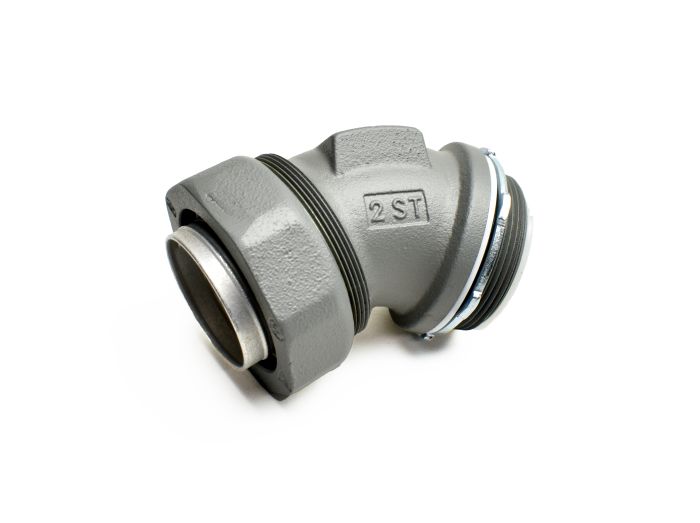

Appleton STB-45200 STB Insulated Throat Series 2 inches 45deg

Product Description

The APPLETON STB-45200 is part of the STB Insulated Throat Series, providing a dependable connection for liquidtight flexible metal conduit. These connectors seal out oil, water, dust, dirt, and fumes. Suitable for use in machine tool building, motor and transformer terminations, robotics assembly and air conditioning equipment installation.

• Provides a dependable connection for liquidtight flexible metal conduit
• Seals out oil, water, dust, dirt and fumes
• Suitable for wet locations

Product Highlights

The APPLETON STB-45200 ensures a secure and environmentally protected connection for flexible metal conduits in various industrial applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-45200

Technical Specifications

• Manufacturer Part Number: STB45200
• Manufacturer: Appleton
• Product Series: STB Insulated Throat
• Family Series: Appleton Fittings, STB Insulated Throat Series
• Description: 2 IN 45D INSUL LFMC CONN
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Compression
• Angle: 45 °
• Trade Size: 2 "
• Hub Size: 2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Net Weight: 1.785 lbs
• Gross Weight: 1.915 lbs
• Applications: For Liquidtight Flexible Metal Conduit
• Size: 2 IN
• Split Crucible: S
• TC Connection: Threaded X Compression
• Type: STB Series 45 DEG Liquidtight Connector With Insulated Throat
• Brand: Appleton
• 12-Digit UPC: 781381681858
• Finish: Powder Coated
• GTiN: 00781381681858
• Product UPC: 78138168185
• Part Number #: STB45200
• SKU #: 1642686
• Dimensions: 3.19 in W
• UNSPSC: 39121420
