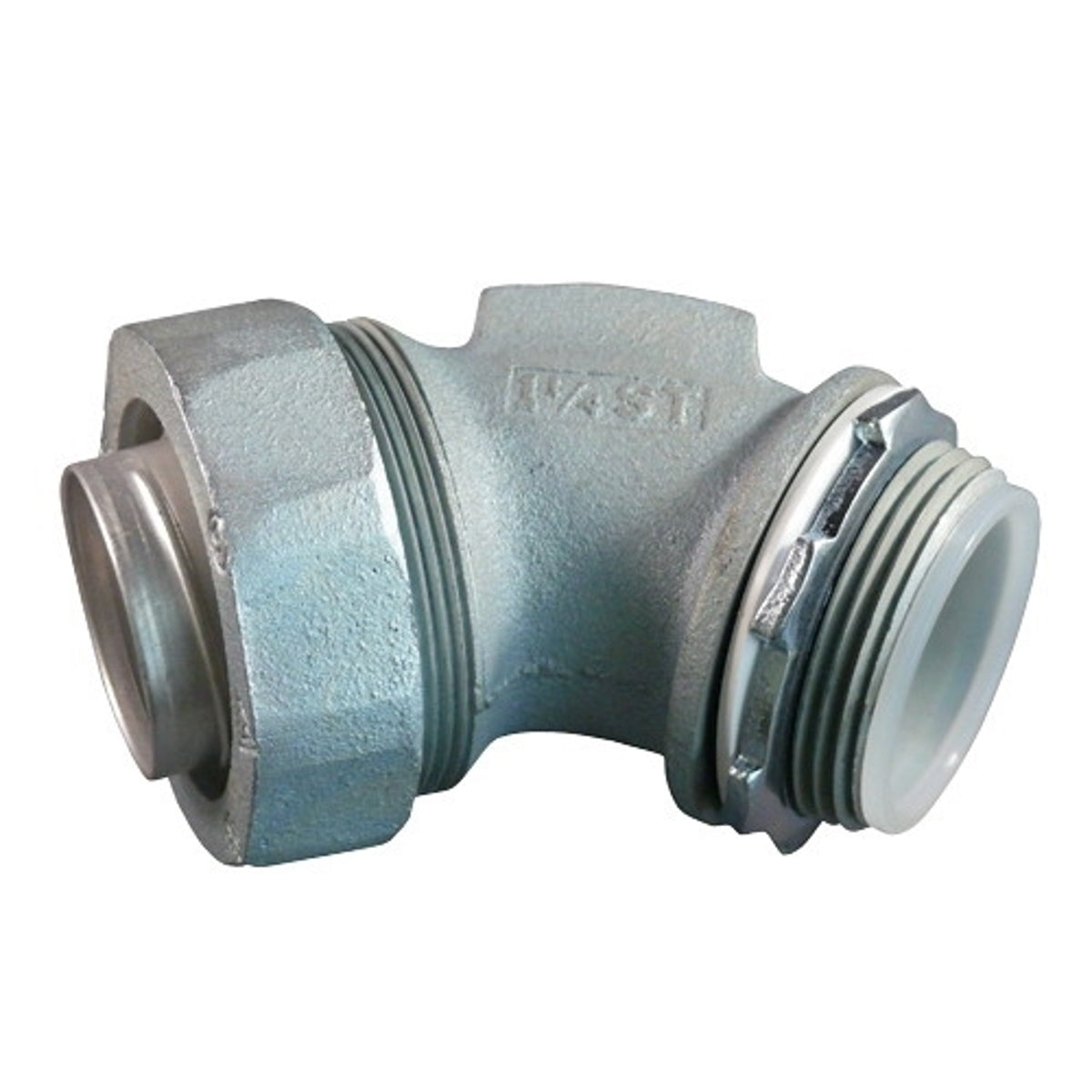

Appleton STB-45125 Liquidtight Connector with Insulated Throat 1-1/4 inch

Product Description

The APPLETON STB-45125 liquidtight connector with insulated throat provides a dependable connection for liquidtight flexible metal conduit. Seals out oil, water, dust, dirt, and fumes. Compact design offers a small turning radius. Suitable for wet locations.

• Seals out oil, water, dust, dirt and fumes
• High corrosion resistance
• Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements

Product Highlights

The APPLETON STB-45125 is ideal for creating a secure, liquidtight connection in demanding environments. Its robust construction and thoughtful design ensure long-lasting performance and protection.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-45125
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: STB-45125
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Liquidtight Flexible Metal Conduit
• Connection: Threaded X Compression
• Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated
• Material: Malleable Iron
• Special Features: Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• UPC: 781381681759
• GTIN: 00781381681759
• Item Type: STB Series 45 DEG Liquidtight Connector With Insulated Throat
• Size: 1-1/4
• Conduit Type: Liquid-Tight
• Flexibility: Rigid
• Diameter: 1 1/4 in
• Applications: For Liquidtight Flexible Metal Conduit
• Split Crucible: S
• TC Connection: Threaded X Compression
• Trade Size: 1-1/4 Inch
• Type: 45, Flexible, 1-Piece
