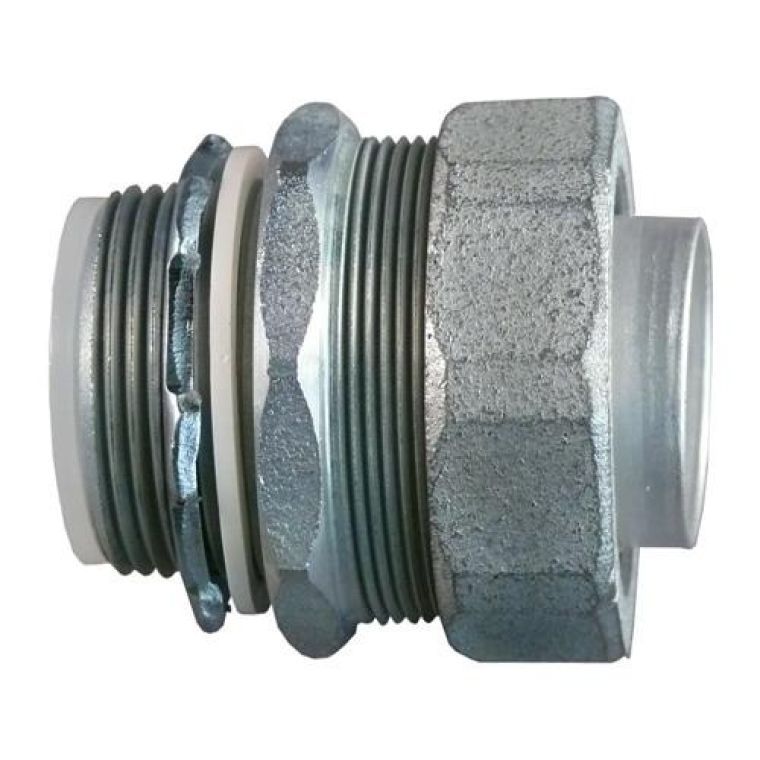

Appleton STB-125 Insulated Throat Liquidtight Conduit Connector 1-1/4 in Trade Straight

Product Description

The APPLETON STB-125 is an insulated throat liquidtight conduit connector designed for providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants. It terminates liquidtight flexible metal conduit (LFMC) and liquidtight flexible nonmetallic conduit (LFNC) into an enclosure or junction box.

• Seals out oil, water, dust, dirt and fumes
• High corrosion resistance
• Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements

Product Highlights

This straight liquidtight connector is suitable for wet locations and has a compact design with a small turning radius. It is made of malleable iron with a chromate/epoxy powder coated/zinc electroplated finish.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-125
• Country of Origin: MX

Technical Specifications

• Application: For Liquidtight Flexible Metal Conduit
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: STB125
• Connection: Threaded X Compression
• Country of Origin: MX
• EU RoHS Indicator: Y
• Series: STB
• Size: 1-1/4 IN in
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178Class I, Div 2RoHS Compliant
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Type: Straight, 1-Piece, 1-Inlet
• UNSPSC: 39121420
• UPC 11: 78138168110
• UPC 12: 781381681100
• Brand: Appleton
• Manufacturer: Appleton
• Angle: Straight
• Finish: Epoxy Powder Coated
• Material: Malleable Iron
• Trade Size: 1-1/4 in
• Global Trade Identification Number: 00781381681100
• Unit Count: 1.0 Count
• UPC: 781381681100
• Included Components: STB125
• Brand Part Number: STB-125
• Conduit Type: LFMC / LFNC
• Connection Orientation: Straight
• Enclosure Rating: Concretetight / Oiltight / Raintight
• Enclosure Rating Specs: UL 514B
• Fitting Type: Connector
• Hazard Rating Specs: Class I, Division 2
• Insulated: Yes
• Specifications Met: UL 514B, Class I, Div 2, CSA 065178, CSA C22.2 No. 18.3, UL File No. E14814
• Applications: For Liquidtight Flexible Metal Conduit
• TC Connection: Threaded x Compression
• Diameter: 1 1/4 in
