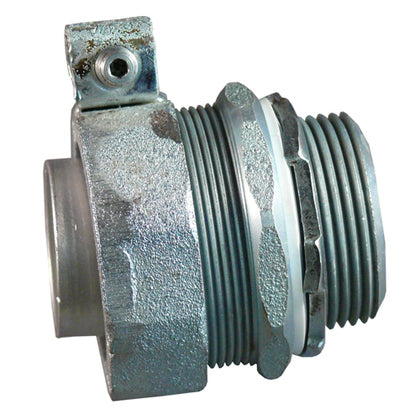

Appleton ST125L Non-Insulated Liquidtight Conduit Connector 1-1/4 in (Straight)

Product Description

The Appleton ST125L is a non-insulated straight liquidtight conduit connector with an external grounding lug designed for use with liquidtight flexible metal conduit (LFMC). It is constructed of malleable iron with an electroplated zinc finish, sized for 1-1/4 inch conduit and measures 2 in length by 2.31 in width. The connector meets UL 514B, CSA C22.2 No. 18.3, and NEMA FB-1 standards and is suitable for outdoor, wet, and specified hazardous locations.

• Malleable iron construction with electroplated zinc finish and full machined tapered NPT threads; long ferrule provides metal-to-metal grounding and exceeds UL pull-out requirements.
• Designed for 1-1/4 in liquidtight flexible metal conduit (LFMC); straight, non-insulated body with external grounding lug; dimensions 2 in L x 2.31 in W and 0.63 in thread length.
• Certified to UL 514B (E14814), CSA C22.2 No. 18.3 (065178), and NEMA FB-1; rated for liquidtight, raintight, oiltight, outdoor use and applicable hazardous location classifications.

Product Highlights

1-1/4 in straight LFMC connector with external grounding lug and UL/CSA/NEMA certifications

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST125L

Technical Specifications

• Brand: Appleton
• Manufacturer: Appleton
• MPN: ST125L
• Series: ST Series
• Type: Non-Insulated Straight
• Connection Type: Straight
• Material: Malleable Iron
• Finish: Electroplated Zinc
• Conduit Size: 1-1/4 in
• Dimensions: 2 in L x 2.31 in W
• Length: 2 in
• Diameter: 2.31 in
• Thread Length: 0.63 in
• Thread Type: Full machined tapered NPT threads
• Grounding Lug: External grounding lug
• Suitable For Use With: Liquidtight flexible metal conduit (LFMC)
• Application: Liquidtight, raintight, oiltight, outdoor use; suitable for specified hazardous locations (Class I Div. 2; Class II Div. 1 & 2; Class III Div. 1 & 2)
• Standards/Certifications: UL 514B (E14814 Listed); CSA C22.2 No. 18.3 (065178 Certified); NEMA FB-1 Approved
• Mounting Type: Box/Enclosure
• Catalog Number: ST125L
• Item Number: 0154005
• UPC: 781381403115
• Weight: 0.5
