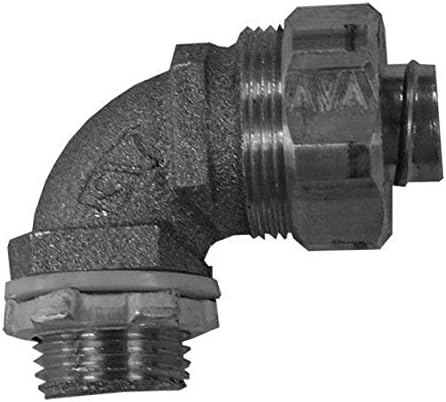

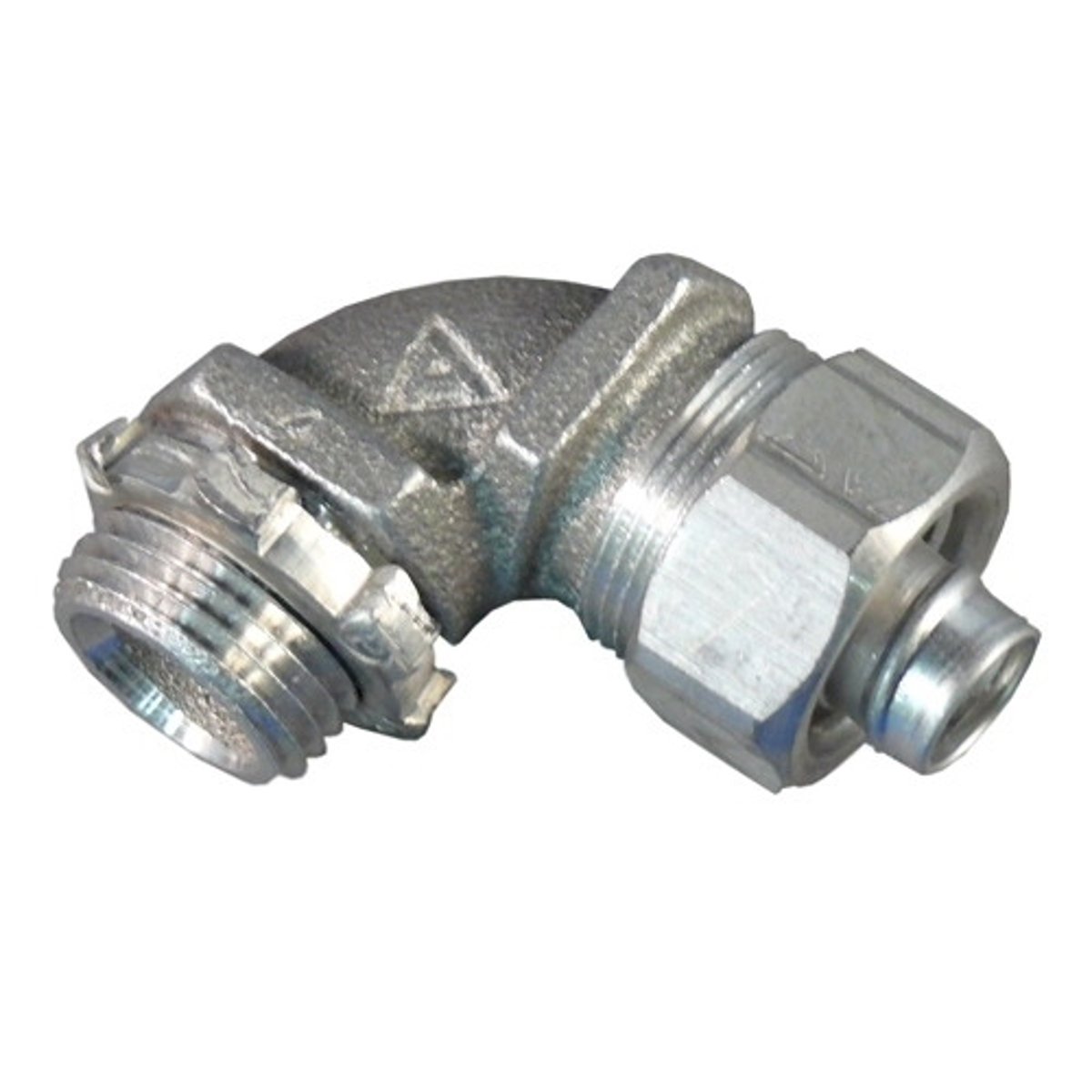

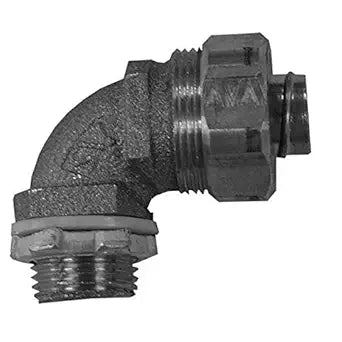

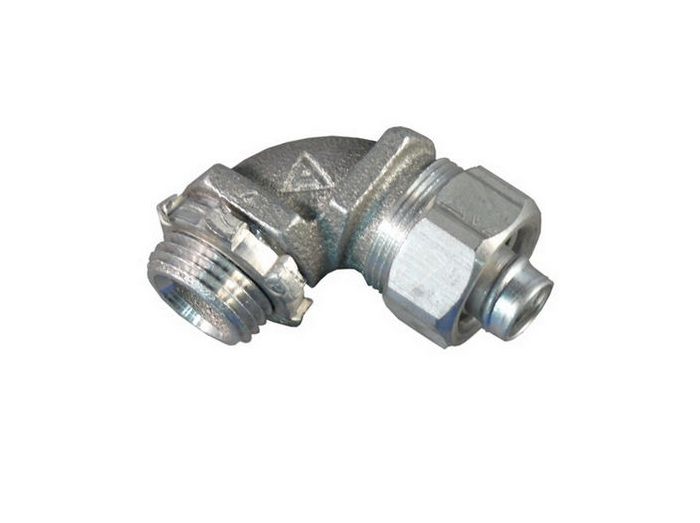

Appleton ST-9050AL Liquidtight Conduit Connector 1/2 inches 90 deg

Product Description

The APPLETON ST-9050AL is a liquidtight conduit connector designed for use with liquidtight flexible metallic conduit. Constructed from lightweight, copper-free aluminum, it facilitates easy installation and provides a dependable connection. It is suitable for wet locations and offers high corrosion resistance. The compact design provides a small turning radius.

• Seals out oil, water, dust, dirt, and fumes
• Features a unique long ferrule for enhanced pull-out resistance and better sealing
• Full, machined tapered threads (NPT)

Product Highlights

This 90-degree connector ensures a secure, liquidtight connection for flexible metallic conduits in various demanding environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-9050AL
• Country of Origin: MX

Technical Specifications

• Manufacturer Part Number: ST-9050AL
• Series: ST Series
• Angle: 90 deg
• Material: Copper Free Aluminum
• Trade Size: 1/2 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• TC Connection: Threaded X Compression
• Application: For Liquidtight Flexible Metal Conduit
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 06517
• Type: Liquidtight Oiltight Raintight
• Throat Type: Non-Insulated
• Connection: Threaded X Compression
• Product Series: Aluminum ST
• Family Series: Appleton Fittings, Aluminum ST Series
• Insulated Throat: No
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: Yes
• Approvals: CSA, UL
