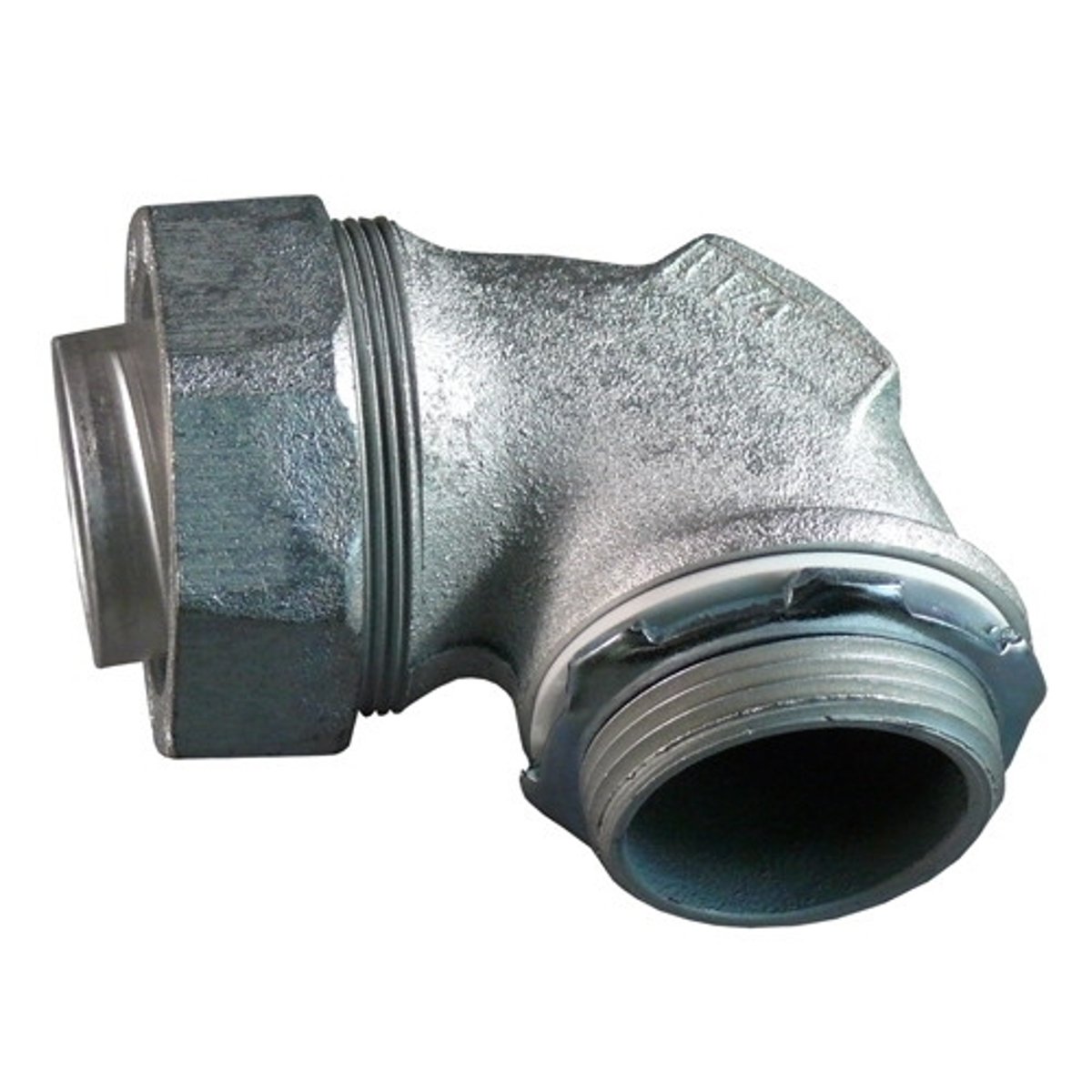

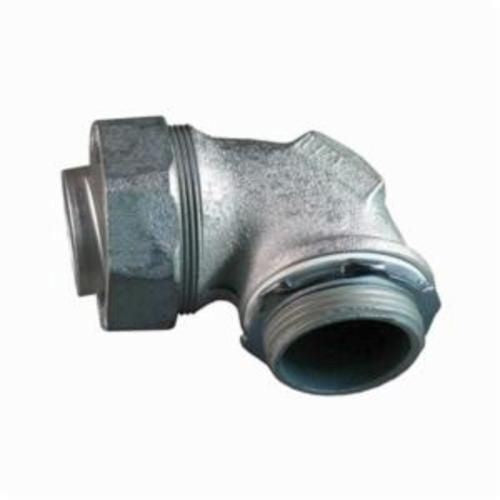

Appleton ST-90300 conduit connector 3 in 90 deg

Product Description

The APPLETON ST-90300 conduit connector is liquid tight, oiltight, and raintight. This ST Series connector is a 3 inch, 90 degree fitting designed for use with liquid tight flexible metallic conduit. Constructed from malleable iron with a triple coated finish, it measures 4.38 inches in width. Suitable for machine tool building, motor and transformer terminations, and robotics assembly.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Polypropylene sealing ring with locknut standard

Product Highlights

Seals out oil, water, dust, dirt and fumes. Compact design with small turning radius. Suitable for wet locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-90300
• Country of Origin: MX

Technical Specifications

• Angle: 90 deg
• Finish: Triple Coated
• Series: ST Series
• Material: Malleable Iron
• Trade Size: 3 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Application: Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation
• Connection: Threaded X Compression
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Item Type: ST Series 90 DEG Liquidtight Connector With Plain Throat
• Country of Origin: Mexico
• Made in USA: No
• Throat Type: Non-Insulated
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Hub Size: 3 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Thread Size: 3 inch
• Diameter: 3 in
