Appleton ST-90200L St90200l Apn 2 in 90 deg

Product Description

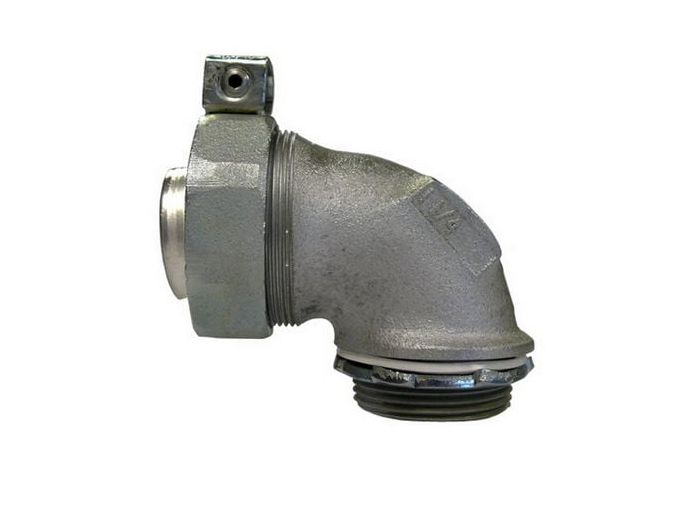

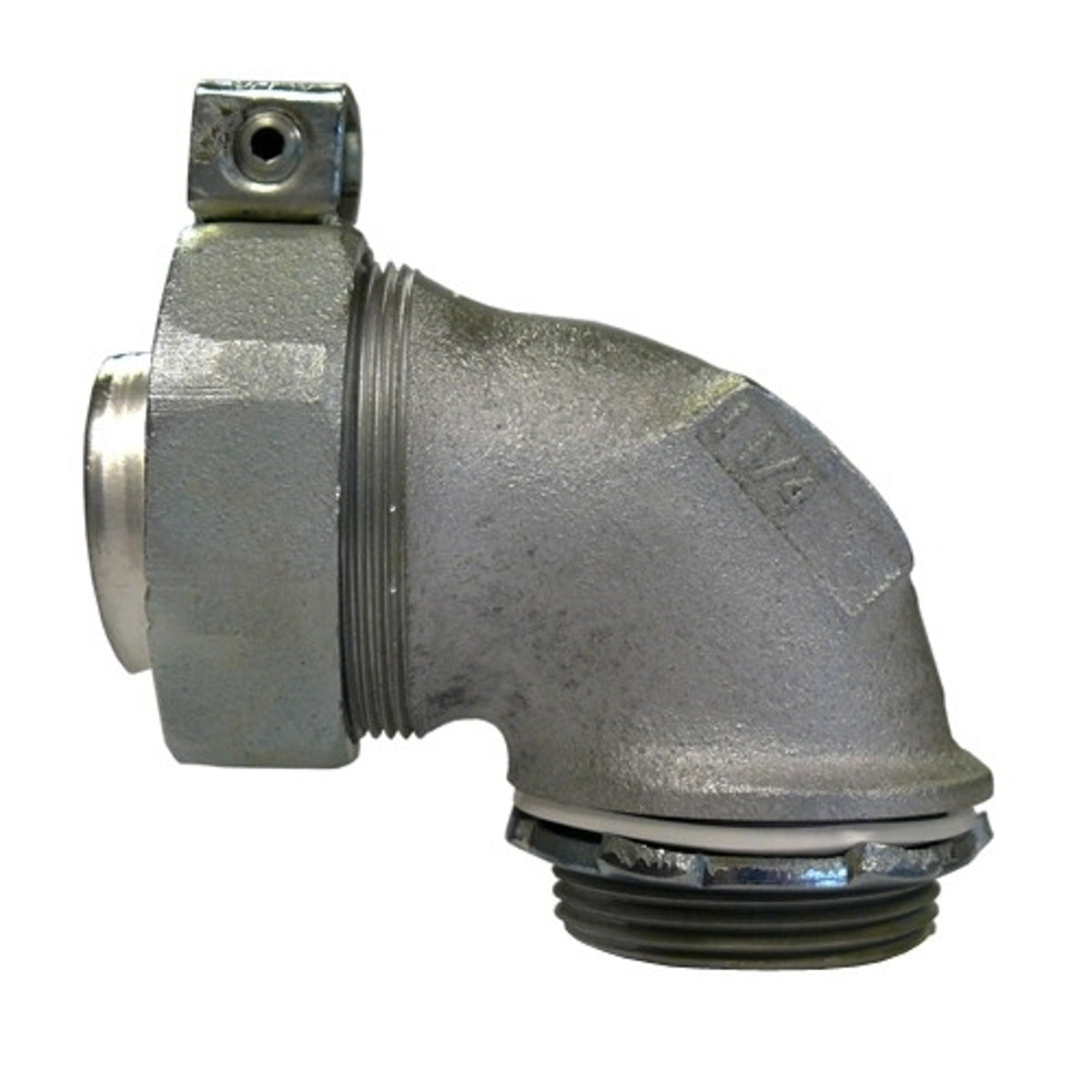

The Appleton ST-90200L is a conduit connector designed for liquid tight, oil tight, and rain tight applications. Part of the ST Series, this 2-inch, 90-degree connector is constructed from malleable iron with a triple coated finish. It accommodates cable openings from 8 to 1/0 AWG and is suitable for use with liquid tight flexible metallic conduit.

• Unique long ferrule with pronounced threads exceeds UL pull out requirements.
• Ferrule provides maximum surface contact for enhanced sealing and grounding.
• Bonded lugs ensure grounding continuity and allow for inspection.

Product Highlights

This 90-degree liquid tight conduit connector ensures a secure and reliable connection for flexible metallic conduits in demanding environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-90200L
• Country of Origin: MX

Technical Specifications

• Angle: 90 °
• Finish: Triple Coated
• Series: ST Series
• Material: Malleable Iron
• Trade Size: 2 in
• Cable Openings: 8 to 1/0 AWG
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Type: Liquidtight Oiltight Raintight
• Applications: For Liquidtight Flexible Metal Conduit
• TC Connection: Threaded X Compression
• Catalog Number: ST-90200L
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Connection: Threaded X Compression
• Special Features: Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT)
• Standard: Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• UPC: 781381403429
• GTIN: 00781381403429
• Item Type: ST Series 90 DEG Liquidtight Connector
• Throat Type: Non-Insulated with Ground Lug
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Wire Size: 8 to 1/0 AWG
• Product Series: ST
• Family Series: Appleton Fittings, ST Series
• Description: Fitting
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Hub Size: 2 "
• Hub Type: Male NPT Thread
• Grounding: Yes
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Sub_Brand: Appleton
• Application: For Liquidtight Flexible Metal Conduit
• ARRA Compliant: N
• Buy American Compliant: N
• Conductor Range: 8 - 1/0 AWG
• EU RoHS Indicator: N
• Standards: UL 467UL File No. E6581CSA C22.2 No. 18.3CSA 065178, Class I, Div 2
• UNSPSC: 39121420
• UPC 11: 78138140342
• UPC 12: 781381403429
• Diameter: 2 in
