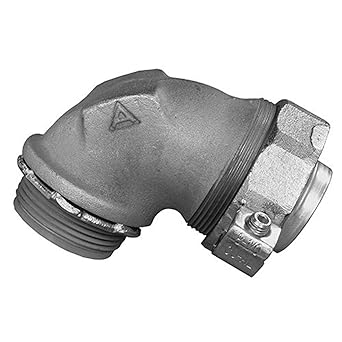

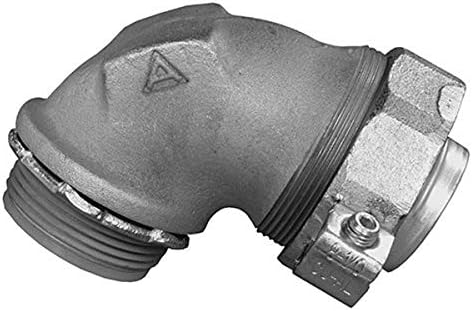

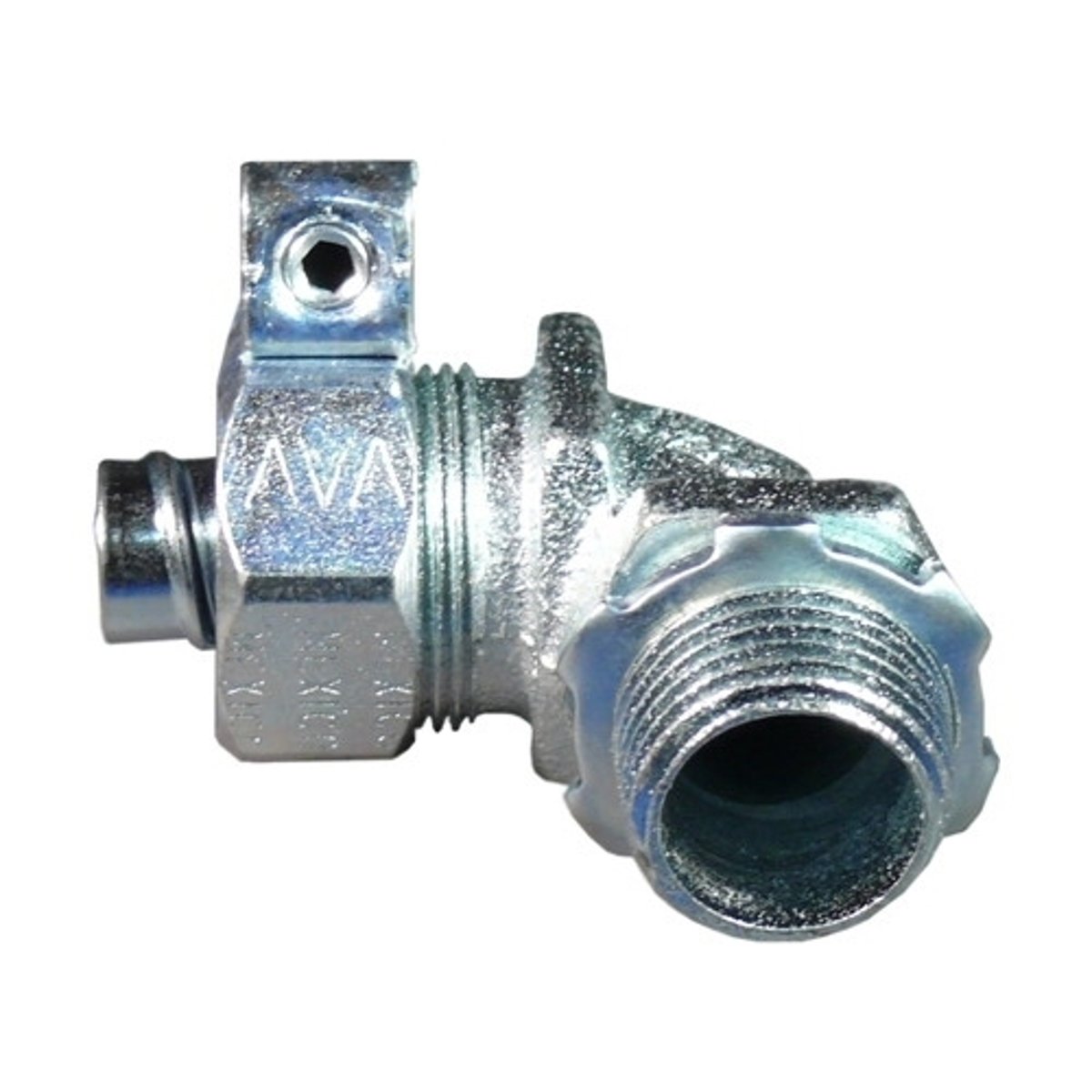

Appleton ST-90100L Conduit Connector 1 in 90 deg

Product Description

The APPLETON ST-90100L conduit connector is liquid tight, oil tight and rain tight. This ST Series connector is 1 inch, with cable openings from 14 to 4 AWG, and a 90 degree angle. It is designed for use with liquid tight flexible metallic conduit and made of malleable iron with a triple coated finish.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection

Product Highlights

This connector ensures a secure and sealed connection for liquid tight flexible metal conduits in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-90100L
• Country of Origin: MX

Technical Specifications

• Angle: 90 deg
• Finish: Triple Coated
• Series: ST Series
• Material: Malleable Iron
• Trade Size: 1 in
• Cable Openings: 14 to 4 AWG
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• TC Connection: Threaded X Compression
• Conductor Range: 14 - 4 AWG
• Connection: Threaded X Compression
• Standard: Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Item Type: ST Series 90 DEG Liquidtight Connector
• Application: For Liquidtight Flexible Metal Conduit
• Throat Type: Non-Insulated with Ground Lug
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Wire Size: 14 to 4 AWG
• Brand: Appleton
• Thread Size: 1 inch
• Thread Type: LFMC
• Manufacturer: Appleton
• Part Number: ST90100L
• Type: Liquidtight Oiltight Raintight
