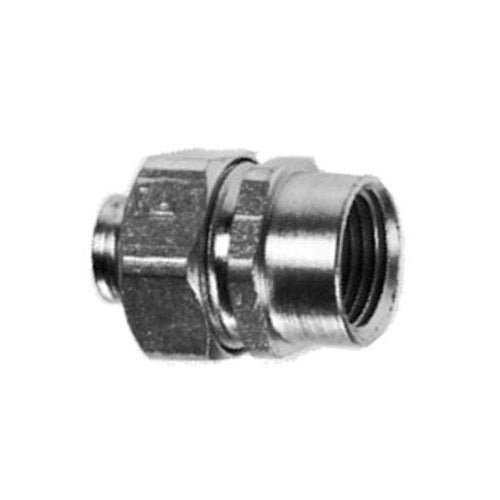

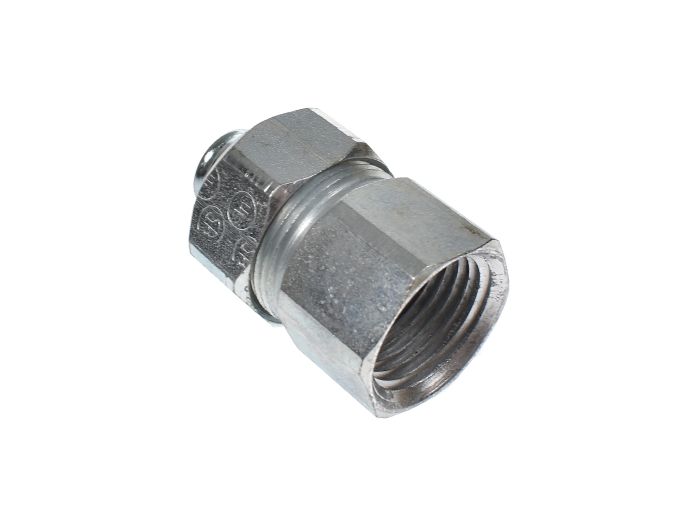

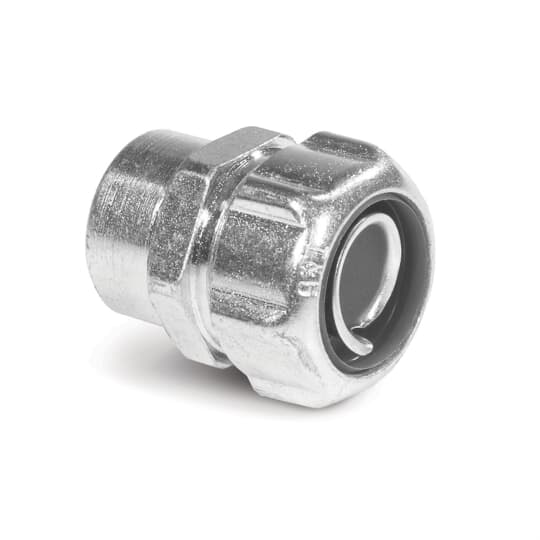

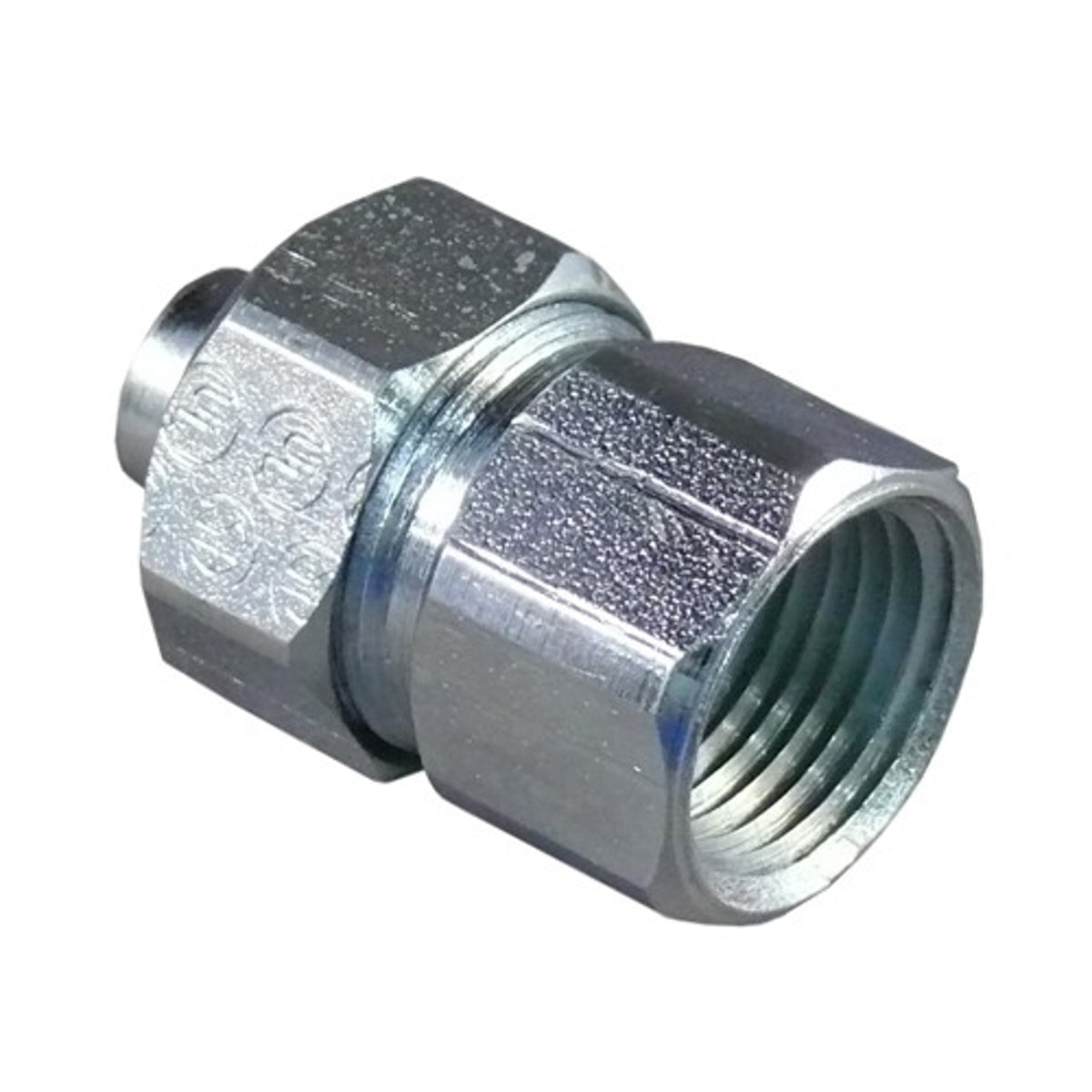

Appleton ST-38F 3/8 in LFMC Conn Fem (3/8 in Flex, 1/2 in Hub)

Product Description

The Appleton ST-38F is a female liquidtight connector with a threaded hub designed for connecting liquidtight flexible metal conduit to threaded rigid conduit and IMC. It features a steel construction with a zinc electroplate finish. The unique long ferrule provides enhanced pull-out resistance and sealing. Suitable for wet locations.

• Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull-out requirements
• The ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground
• Suitable for wet locations

Product Highlights

The Appleton ST-38F ensures a secure, liquidtight connection for flexible metal conduits in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-38F
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ST-38F
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Liquidtight Flexible Metal Conduit When Making Connection To Threaded Rigid Conduit And IMC
• Connection: Threaded X Compression
• Finish: Zinc Electroplated
• Material: Steel
• Special Features: Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull-out requirements; The ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Suitable for wet locations; Full, machined tapered threads (NPT); ST connectors have compact design with small turning radius Steel ferrule
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• UPC: 781381679053
• GTIN: 00781381679053
• Item Type: ST Series Female Liquidtight Connector With Threaded Hub
• Size: 3/8 IN Flex, 1/2 IN Hub
• Product Series: STF
• Family Series: Appleton Fittings, STF Series
• Description: Fitting, 3/8in.NPT
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Trade Size: 3/8 "
• Hub Size: 1/2 "
• Hub Type: Female Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: Y
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Type: Liquidtight Oiltight Raintight
• UNSPSC: 39121420
• UPC 11: 78138167905
• UPC 12: 781381679053
• Series: ST Series
• Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178RoHS CompliantClass I, Div 2
• Part #: ST38F
• Category: Connector/Terminal/Pin
• Model: ST
• Used On: Flexible Metallic Liquidtight Conduit
• Sub Category: Liquidtight Flexible Conduit Connector
• Manufacturer Brand: Appleton Electric
• Unspsc: 39121420
• Trade Size (Flexible Conduit): 3/8 Inch
• Trade Size (Hub): 1/2 Inch
• Approval: UL 514B, CSA C22.2
