Appleton ST-150F 1-1/2 IN LFMC CONN FEM

Product Description

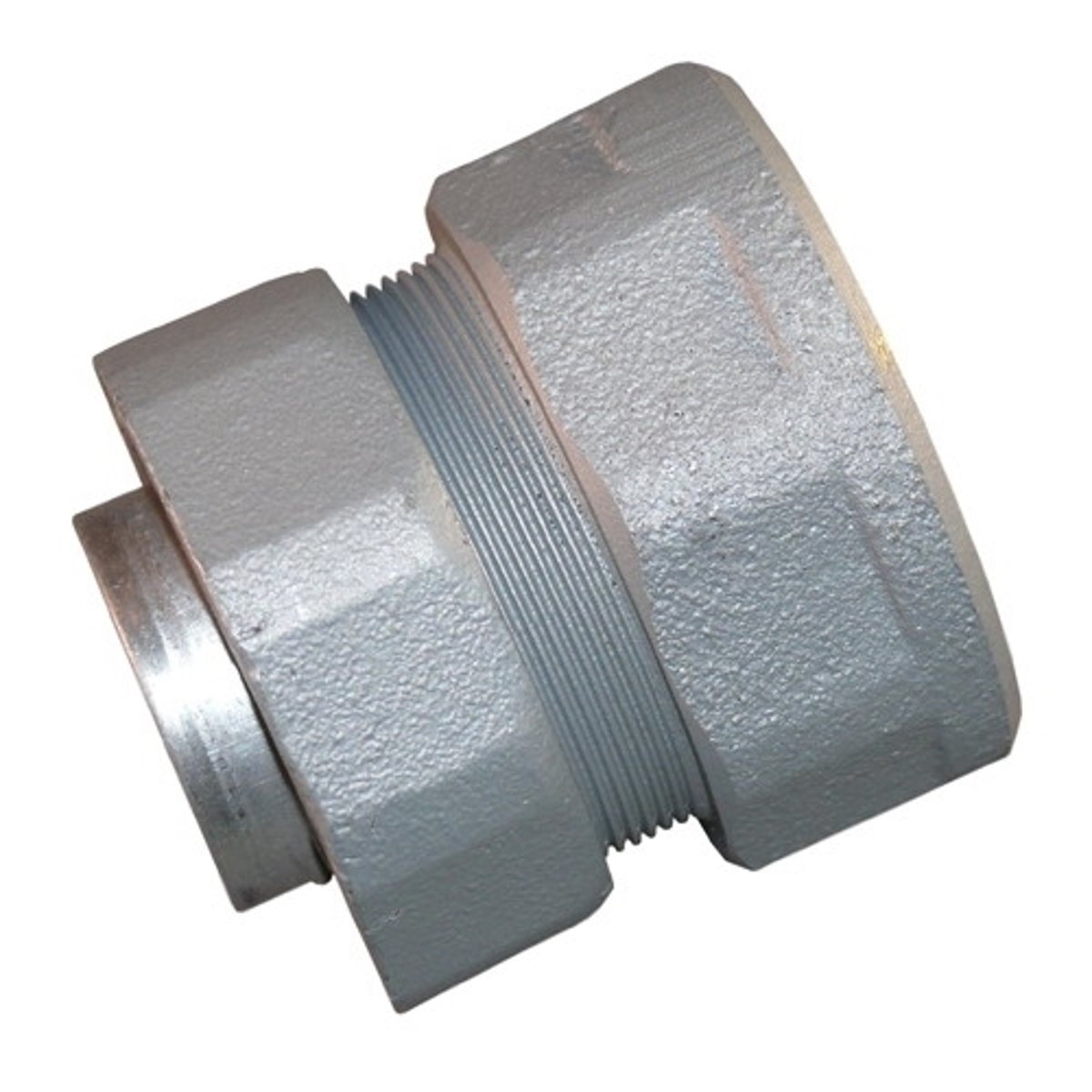

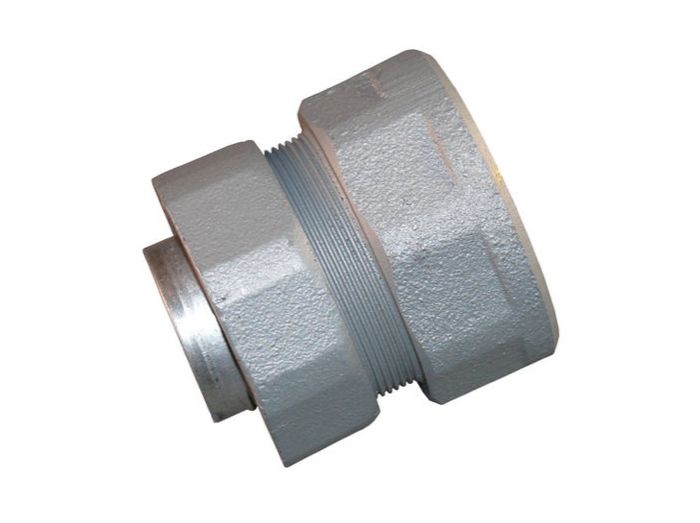

The APPLETON ST-150F female liquidtight connector with threaded hub is designed for connecting liquidtight flexible metal conduit to threaded rigid conduit and IMC. It features a compact design with a small turning radius and a unique long ferrule with pronounced threads for enhanced pull-out resistance.

• Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull-out requirements
• The ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground
• Suitable for wet locations

Product Highlights

This connector is suitable for wet locations and provides a secure, liquidtight connection. It is constructed from malleable iron and features full, machined tapered threads (NPT).

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-150F
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ST-150F
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Liquidtight Flexible Metal Conduit When Making Connection To Threaded Rigid Conduit And IMC
• Connection: Threaded X Compression
• Special Features: Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull-out requirements; The ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Suitable for wet locations; Full, machined tapered threads (NPT); ST connectors have compact design with small turning radius
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• UPC: 781381463324
• GTIN: 00781381463324
• Item Type: ST Series Female Liquidtight Connector With Threaded Hub
• Size: 1-1/2 IN in
• Product Series: STF
• Family Series: Appleton Fittings, STF Series
• Description: Hardware
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Trade Size: 1-1/2 in
• Hub Size: 1-1/2 "
• Hub Type: Female Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Component: Connector
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: C
• Series: ST Series
• Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178RoHS CompliantClass I, Div 2
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Type: Liquidtight Oiltight Raintight
• UNSPSC: 39121420
• UPC 11: 78138146332
• UPC 12: 781381463324
• Finish: Triple Coated
