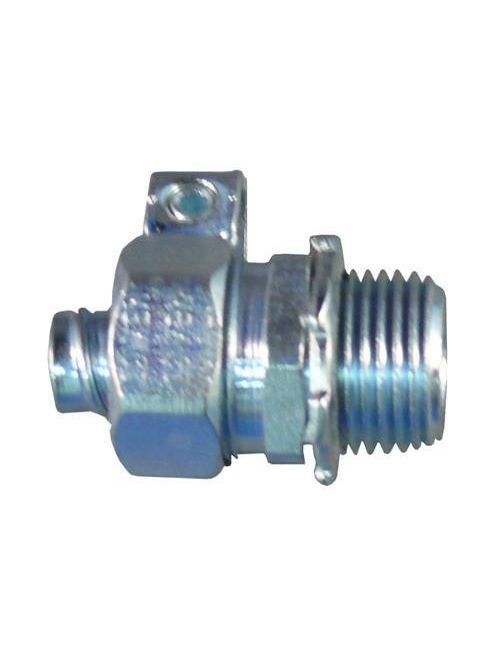

Appleton ST-100L Liquidtight Connector 1 Inch with Grounding Lug

Product Description

The Appleton ST-100L is designed for liquidtight flexible metal conduit connections. This connector has a trade size of one inch and features a threaded and compression connection method. It supports a conductor range from fourteen to four AWG. The product is constructed from steel with a zinc electroplate finish, ensuring durability and protection against corrosion.

• Type: ST Series Straight Liquidtight Connector
• Connection: Threaded X Compression
• Application: Suitable for Liquidtight Flexible Metal Conduit

Product Highlights

This connector includes a grounding lug and is compliant with UL standards, making it ideal for commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: ST-100L

Technical Specifications

• Material: Steel
• Finish: Zinc Electroplate
• Size: 1 Inch
• Conductor Range: 14 - 4 AWG
• Thread Length: Three-fourth Inch
• Dimensions: 1.63 inches length X 1.81 inches height
• Country of Origin: Mexico
• Special Features: Includes external grounding lug and a plain throat design for better sealing
