Appleton Sntc-125 Set Screw Conduit Connector 1-1/4 inch

Product Description

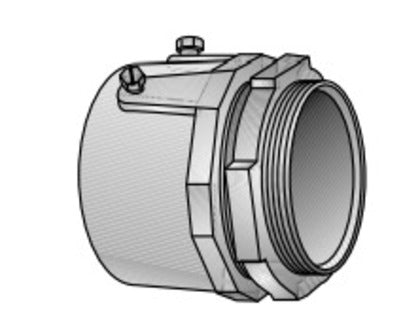

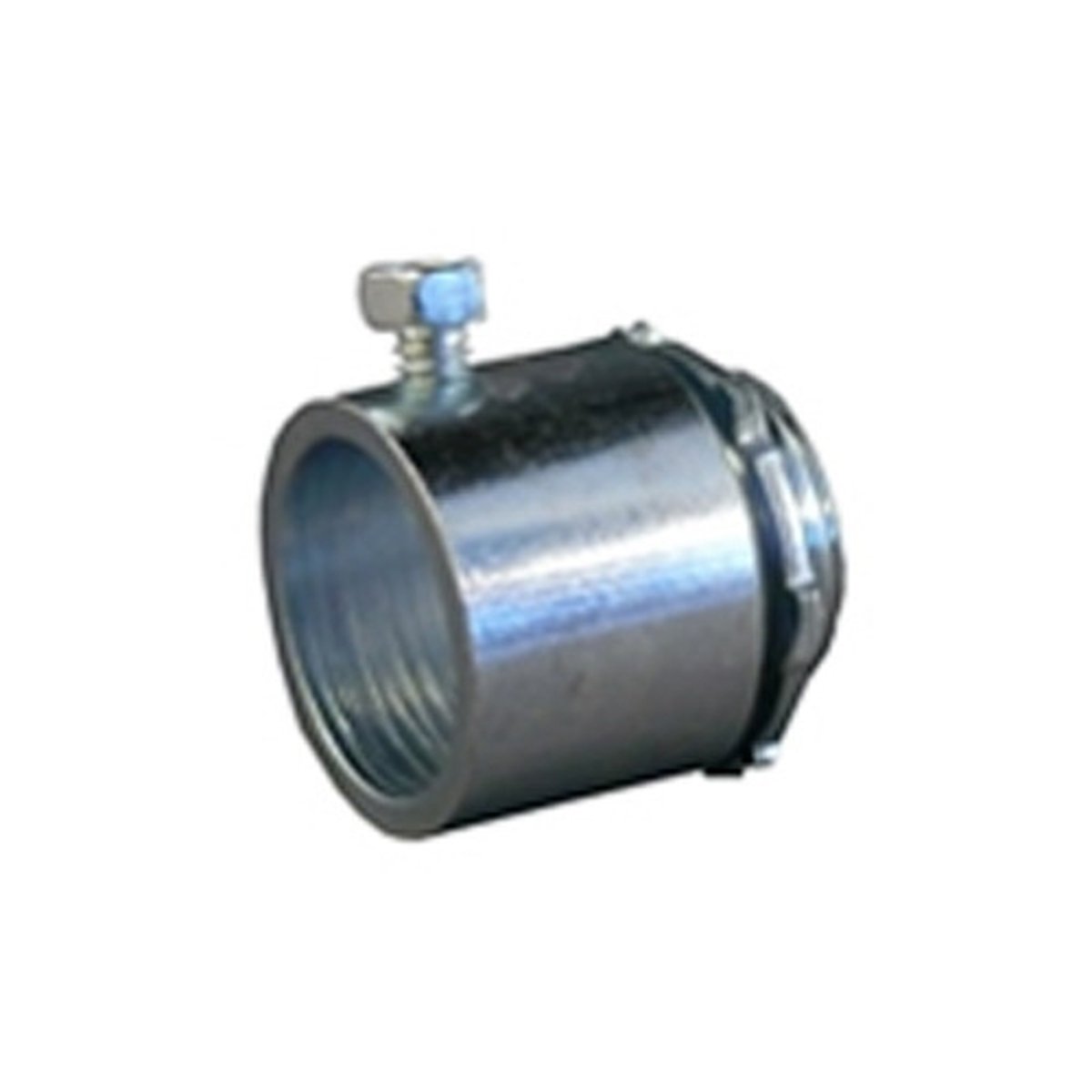

The APPLETON SNTC-125 set-screw connector is 1-1/4 inch in size, made from malleable iron and steel, and used to secure and terminate steel EMT to knockouts and concrete tight boxes. It is concretetight when taped, UL listed, and CSA certified.

• Concrete-tight when taped
• UL listed
• CSA certified

Product Highlights

The APPLETON set-screw connector is ideal for securing and terminating steel EMT to knockouts and concrete tight boxes.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: SNTC-125
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: SNTC-125
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use To Secure And Terminate Steel EMT To Knockouts And Concrete Tight Box
• Connection: Male Threaded X Set-Screw
• Material: Malleable Iron And Steel
• Special Features: Concretetight when taped
• Standard: UL 514B, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• UPC: 781381121040
• GTIN: 00781381121040
• Item Type: Set-Screw Connector
• Size: 1-1/4
• Trade Size: 1-1/4 in.
• Type: Rigid Conduit and IMC Connector
• Installation: Set-Screw
• Throat: Non-insulated
• Diameter: 1 1/4 in
• Insulation: Non-Insulated
• Flexibility: Rigid
• Conduit Type: Rigid Metal (RMC)
• Color: Gray
• Item Diameter: 1-1/4 IN
• Connection Type: Screw
• Suitable For Use With: Threadless Rigid Conduit
• Model: SNTC-125
• Constructional Feature: Concrete-Tight
• Thread Length: 0.63"
• Used On: Rigid Conduit/IMC
