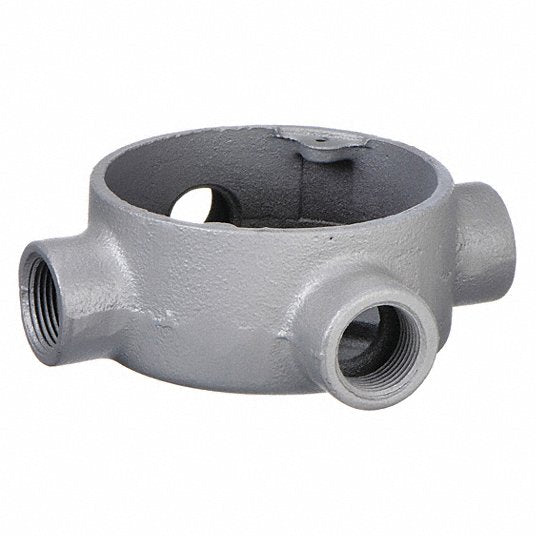

Appleton SEHX-75 UNILETS Conduit Outlet Box 3/4 in

Product Description

The APPLETON SEHX-75 UNILETS Conduit Outlet Box with a 3/4 in hub is designed for use with threaded rigid metal and IMC conduit. Constructed from malleable iron with a triple-coated finish, this outlet box has a capacity of 18 cu-in and features 4 gangs. It facilitates straight connections and 90-degree bends in conduit runs.

• Accepts 4 in octagon outlet box covers
• Furnished with internal ground screw
• Make straight connections and 90 deg bends in conduit runs

Product Highlights

Malleable iron construction, 3/4 inch hub size, and 18 cu-in capacity. UL 514A Listed. Provides access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: SEHX-75
• Country of Origin: Mexico

Technical Specifications

• Finish: Zinc Electroplated/Chromate/Epoxy Powder Coated
• Series: SEH
• Capacity: 18 cu-in
• Hub Size: 3/4 in
• Material: Iron
• Number of Gangs: 4
• Suitable For Use With: Threaded Rigid Metal and IMC
• Catalog Number: SEHX-75
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (4) 3/4 IN SEHX Hub
• Cubic Capacity: 18 CU IN
• Knockouts: No
• Special Features: Accepts 4 IN octagon outlet box covers; Two #8-32 screw holes tapped on 3-1/2 IN centers; Furnished with internal ground screw; Provide openings for splicing; Make straight connections and 90 DEG bends in conduit runs; Permit access to conductors for maintenance
• Standard: UL 514A , UL File Number E2527
• Item Type: Outlet Box
• Size: 3/4
• Type: Tapped
• Number of Hubs: 4
• Hub Location: (2) Sides, (1) Back, (1) Front
• Approval: UL 514A
• Compatible Conduit Type: IMC; Threaded RMC
• Compatible Conduit Trade Size: 3/4 in
• Trade Size: 3/4 in
• Body Style: X
• Connection Orientation: Multi-Angle
• Connection Type: Threaded
• Body Capacity: 18 cu in
• Hub Style: Threaded
• Type of Body: Conduit Outlet Body
• Standards: UL 514A
• For Use With: IMC; Threaded RMC
• Back Type: Round
• Thread Size: 3/4 in
• Thread Gender: Female
• Thread Type: NPT
• Hazardous Location: No
• Item: Conduit Outlet Body
• Manufacturer Part Number: SEHX-75
• UNSPSC: 39121303
• Product Series: SEH
• Family Series: Appleton Electrical Boxes, SEH Series
• Description: UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: 4 3/4 IN SEHX Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Height: 4 IN, Width: 4 IN, Depth: 1.69 IN, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Included: No
• Gasket Included: No
