Appleton SCC-350 Rigid/IMC Conduit Split Coupling 3-1/2 inch

Product Description

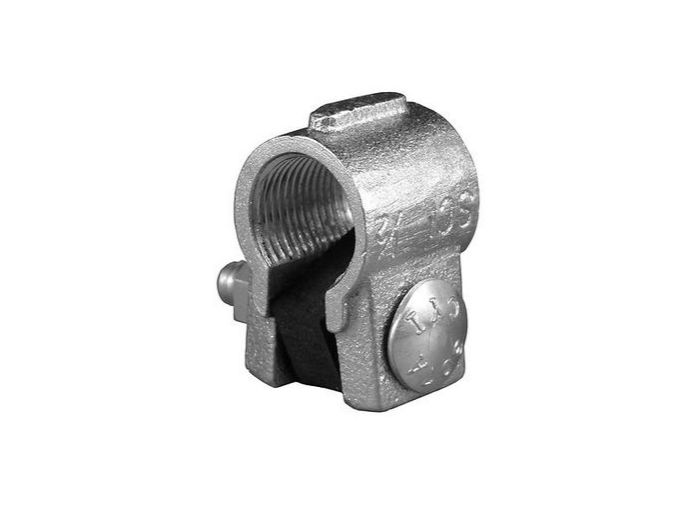

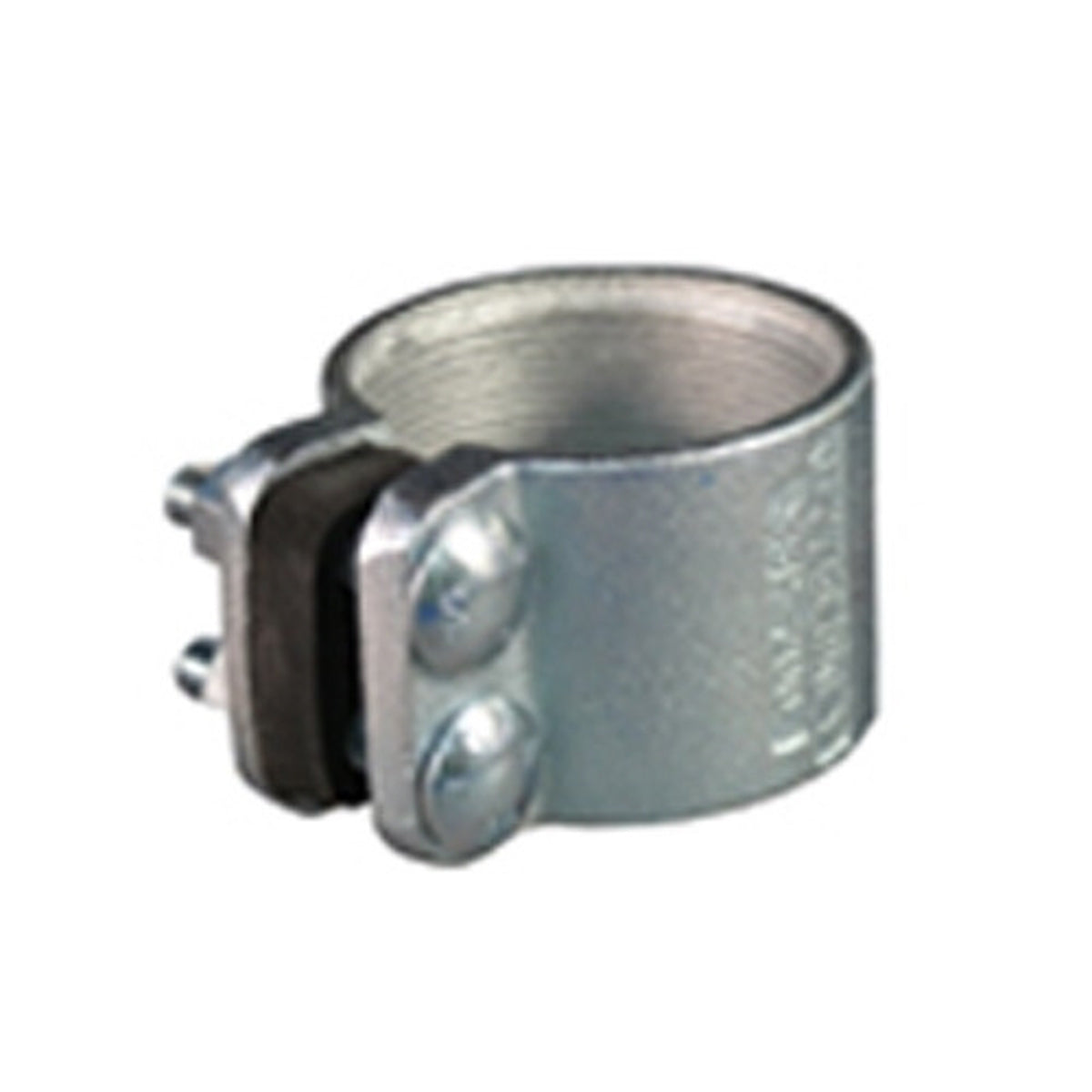

The APPLETON SCC-350 is a rigid/IMC conduit split coupling with a trade size of 3-1/2 inches. Constructed from malleable iron with steel hardware and a neoprene gasket, it features a zinc electroplate finish. This coupling is suitable for threaded rigid conduit and IMC applications. It meets UL 514B, CSA C22.2 No. 18.4, and NEMA FB-1 standards.

• Concretetight
• Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts
• Provides a fast inexpensive method of joining two sections of threaded rigid conduit in areas of close conduit spacing, tight clearance locations and irregular conduit bends which may normally require an expensive union

Product Highlights

This split coupling provides a fast and inexpensive method for joining two sections of threaded rigid conduit and IMC in tight spaces.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: SCC-350
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: SCC-350
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: Bolt-On
• Application: For Threaded Rigid Conduit and IMC
• Connection: Threaded
• Flexibility: Rigid And IMC
• Material: Malleable Iron Coupling, Steel Hardware, Neoprene Gasket
• Special Features: Concretetight; Fast installation - slip bolt-on coupling over threaded end of one conduit section, butt the end of the second threaded conduit section to the first, slip bolt-on coupling to the center of the two conduit threads and tighten bolts; Provides a fast inexpensive method of joining two sections of threaded rigid conduit in areas of close conduit spacing, tight clearance locations and irregular conduit bends which may normally require an expensive union
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.4, CSA 702992 Certified, NEMA FB-1
• Item Type: SCC Series Split Coupling
• Length: 5-3/4 Inch
• Outside Diameter: 4.56 IN
• Trade Size: 3-1/2 IN
• Type: Threaded Split, Bolt-On
• Width: 3.25 Inch
• Product Series: SCC
• Family Series: Appleton Couplers, SCC Series
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Bolt-On
• Protection Rating: Indoor, Outdoor
• Composition: Malleable Iron
• Insulated Throat: No
• Hazardous Location: No
• NEMA Rating: NEMA FB1
• Approvals: CSA, UL
