Appleton S-2500-BO Type S Cable Body 3-3/4 Inch

Product Description

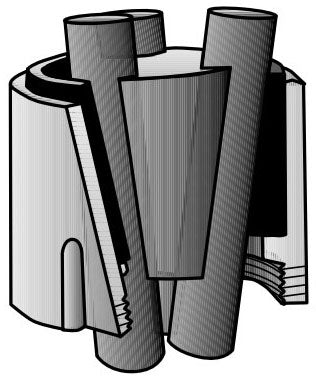

The APPLETON S-2500-BO is a Type S cable body designed for use in electrical conduit and cable fitting applications. Cable bodies of this type serve as the enclosure or housing segment of a cable fitting assembly, allowing conductors to be routed, terminated, or spliced within a protected housing. The S-2500-BO measures 3-3/4 inches and is part of the OZ-Gedney product family distributed under the Appleton brand. Electricians and electrical contractors install these components where conduit systems require a serviceable, accessible fitting body for conductor management.

Type S cable bodies are used in commercial and industrial electrical installations where conduit fittings must provide a secure, accessible enclosure for wire and cable entry. The 3-3/4 inch size accommodates specific conductor or conduit configurations typical of medium to larger electrical system runs. These fittings are commonly installed in plant facilities, commercial buildings, and infrastructure projects where code-compliant conduit assembly is required.

Key Features

• Type S cable body configuration for conduit fitting assemblies
• 3-3/4 inch size for compatibility with corresponding conduit or cable fitting components
• Part of the OZ-Gedney fitting system by Appleton
• Serviceable design allows conductor access after installation

Compatibility

Designed as an OEM-style replacement or direct-fit component for Type S cable fitting assemblies requiring a 3-3/4 inch cable body.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify absence of voltage before disassembling or installing any conduit fitting component. Use appropriate conduit tools and ensure all fitting connections are fully seated and secure before re-energizing.

Technical Specifications

• Type: Type S Cable Body
• Size: 3-3/4 inches
• UPC: 78312602256

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: S-2500-BO
