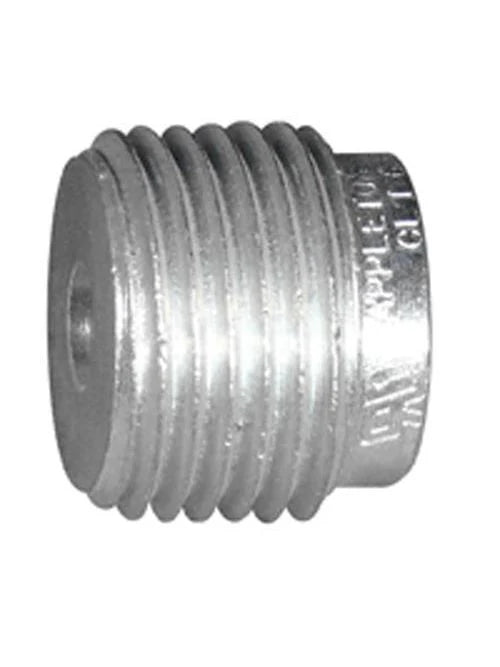

Appleton RB300-100 Reducing Bushing 3 to 1 NPT

Product Description

The Appleton RB300-100 is a reducing bushing designed to transition from a three-inch to a one-inch NPT connection. This product is ideal for applications requiring a reliable connection in hazardous locations, ensuring safety and compliance.

• Material: Steel with a zinc electroplated finish
• Size: three inches by one inch
• Application: Suitable for reducing conduit entries in threaded rigid and IMC conduit systems

Product Highlights

The Appleton RB300-100 provides a secure and effective way to manage conduit entries, maintaining integrity in electrical systems.

Product Information

Standard Information

• Brand: Appleton
• MPN: RB300-100

Technical Specifications

• Material: Steel
• Finish: Zinc Electroplate
• Connection: NPT
• Size: 3 x 1 inches
• Standard: Class I: Groups A, B, C, D; Class II: Groups E, F, G; Class III; UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 0651
• Weight: 2.430 pounds
• Dimensions: Length 12.3 inches, Width 9.6 inches, Height 0.34 inches
• Country of Origin: Mexico
• Application: For reducing conduit entries to a smaller size in threaded rigid and IMC conduit systems
• Special Features: Smooth rounded integral bushing protects conductor insulation
• RoHS Indicator: No
